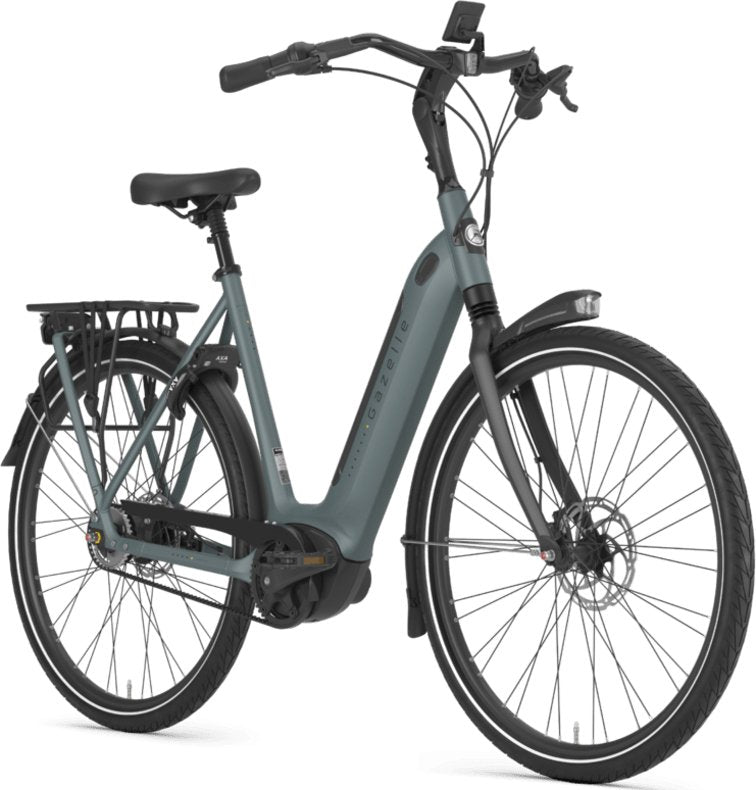

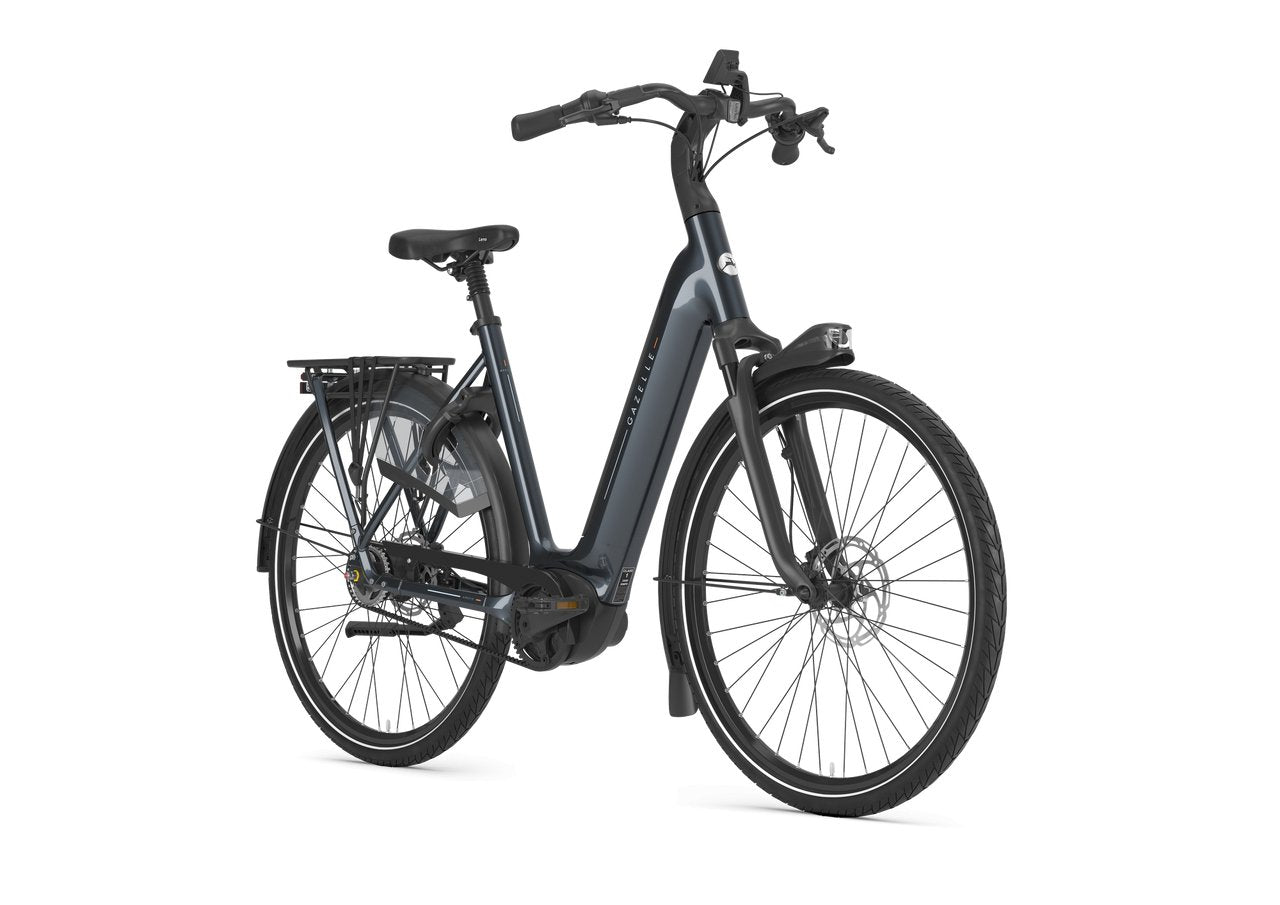

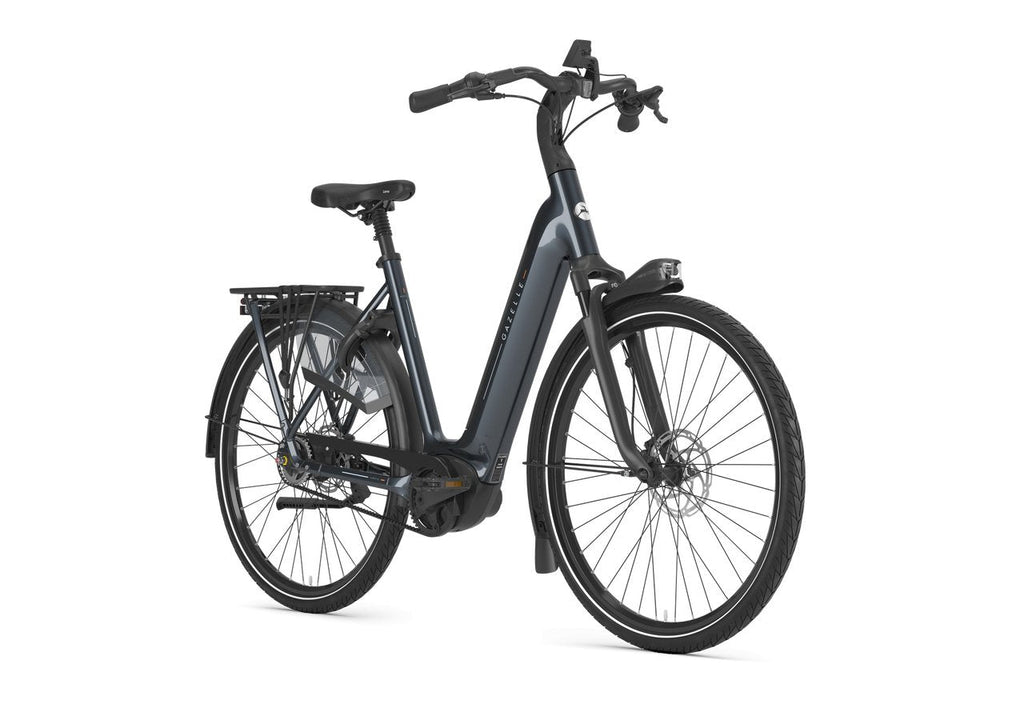

Arroyo C5 HMB Elite
Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.

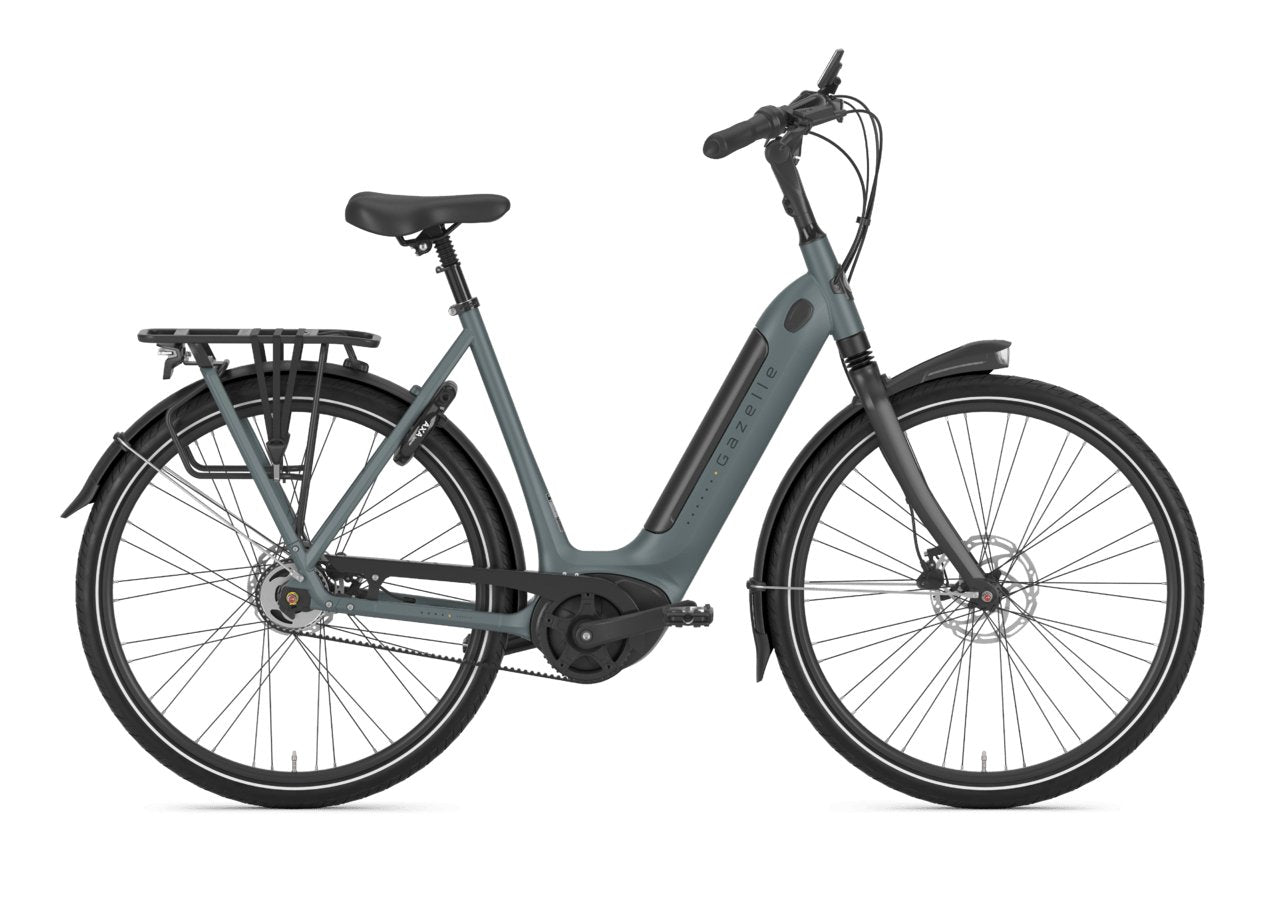

Get a complete view of the Arroyo C5 HMB Elite
Go out. With Arroyo C5 Elite, every ride is comfortable; upright cycling, silent assistance, and an easy step-through. The extra attention to integration and finishing highlights the elegant comfort.
Get to know your ride

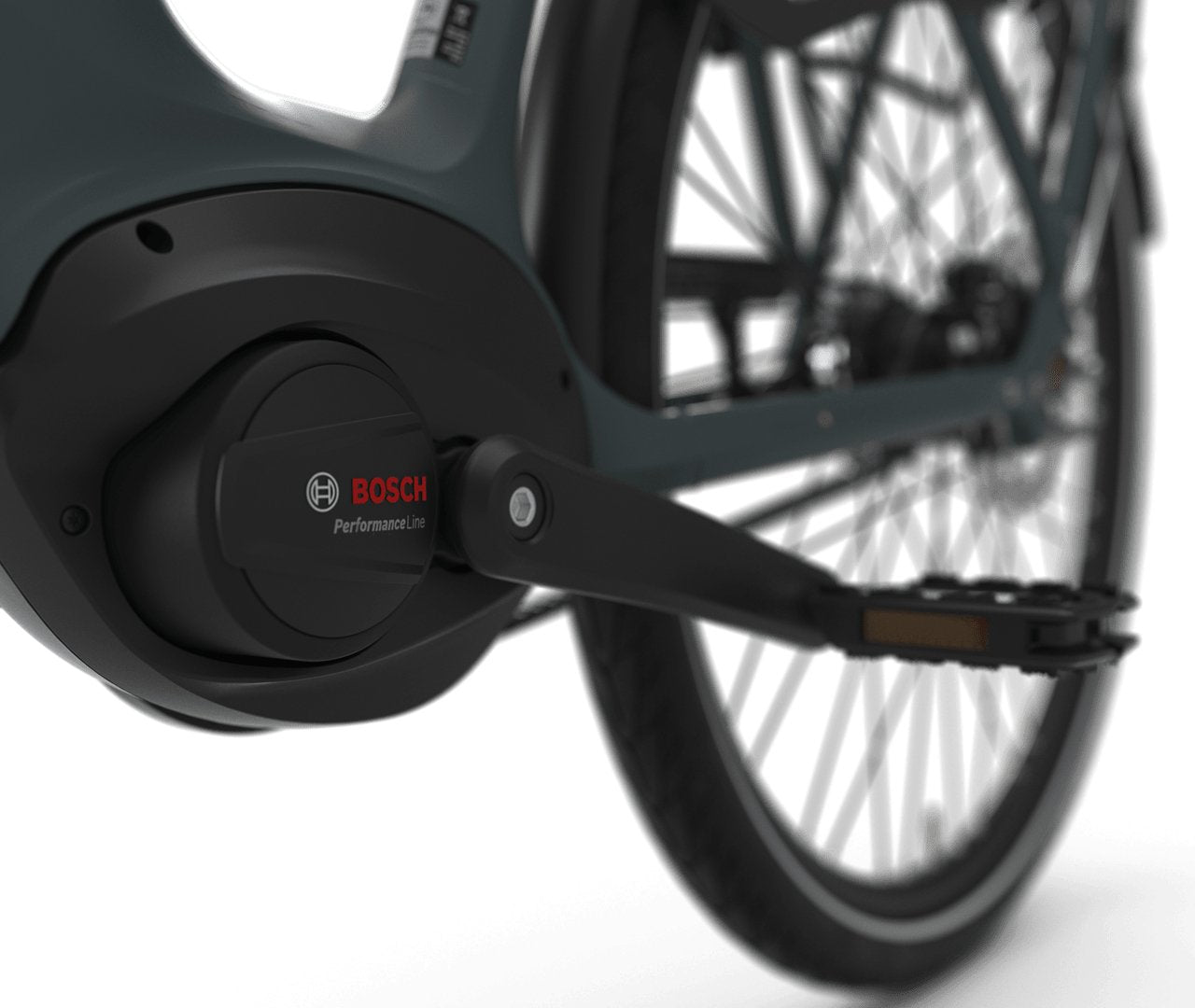

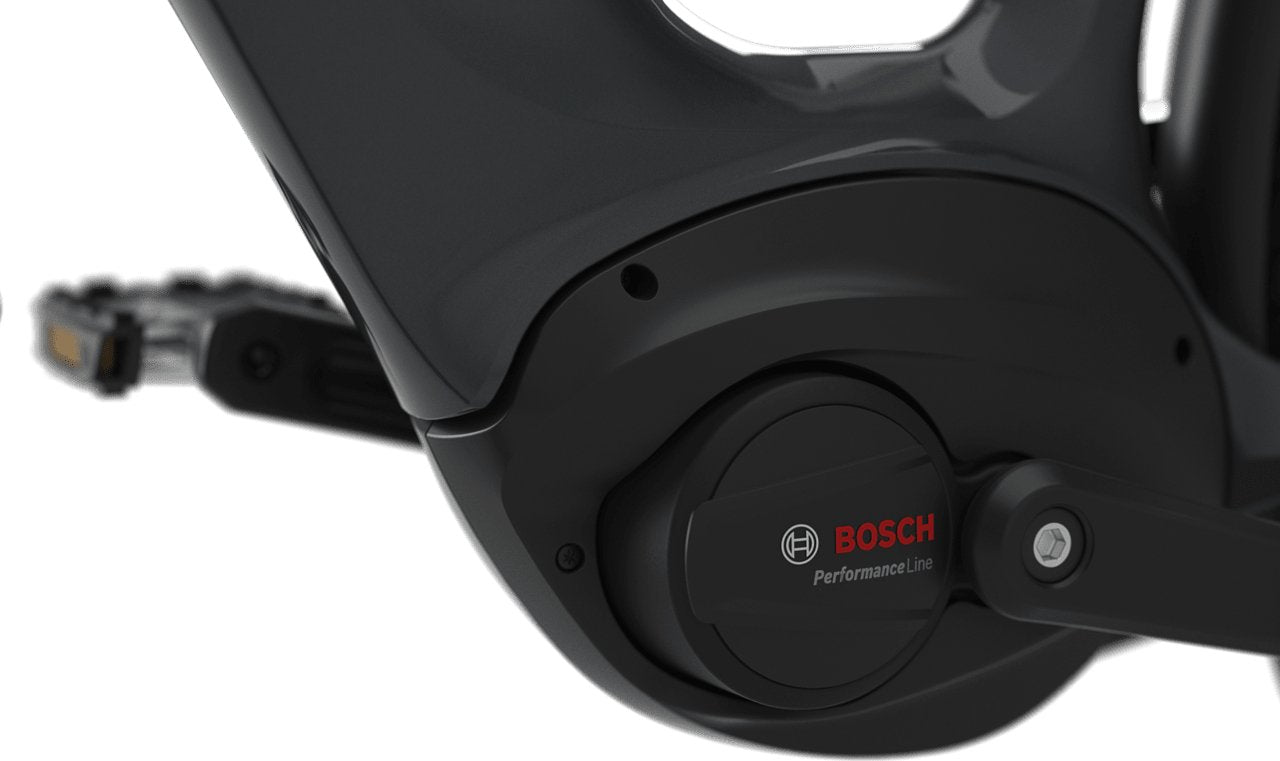

Powerful, mid-drive motor
The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame, lowering the center of gravity to improve stability, while providing a sleek look.

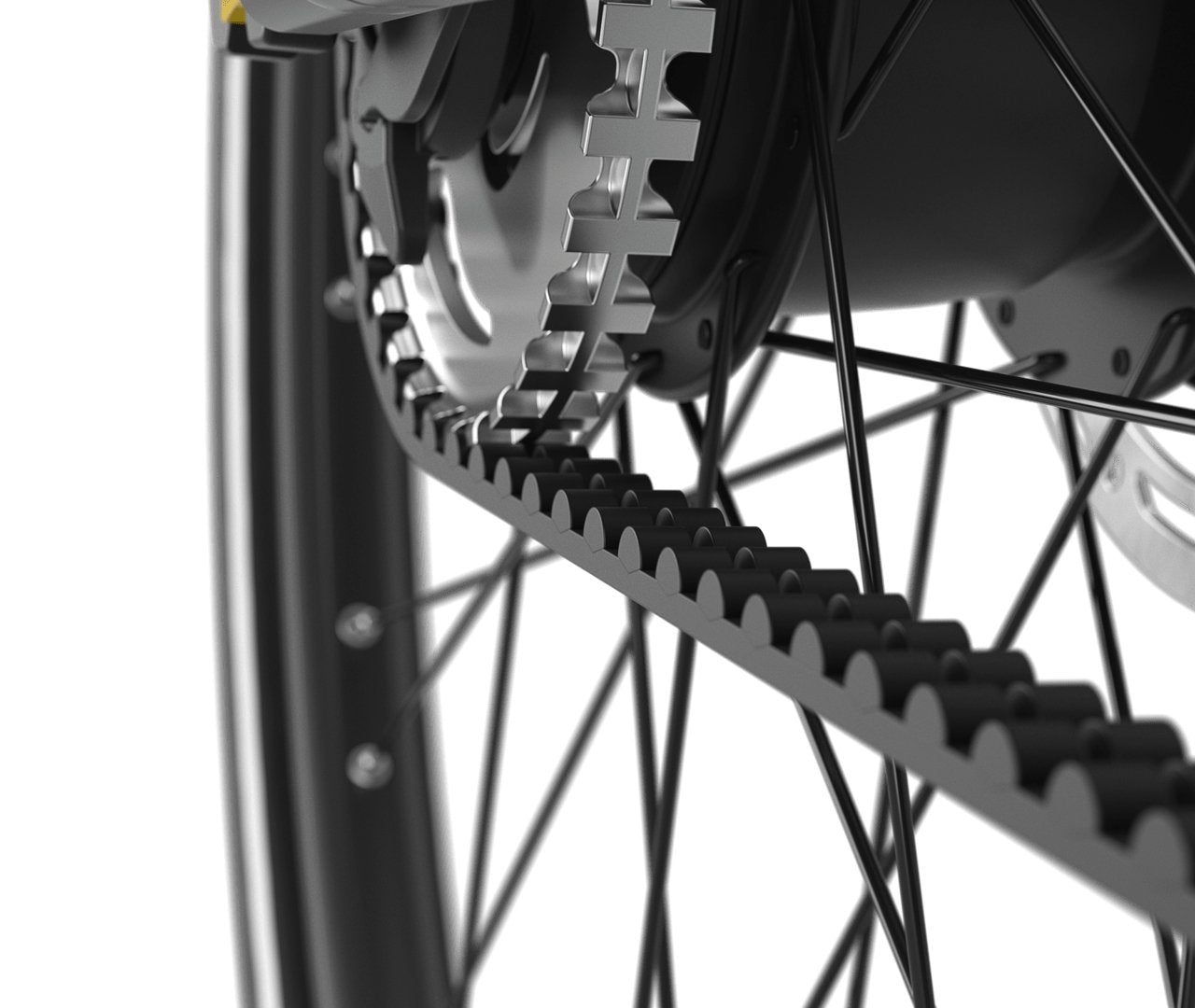

Belt drive: quiet and low maintenance
A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet.
Luxurious finish, more comfort

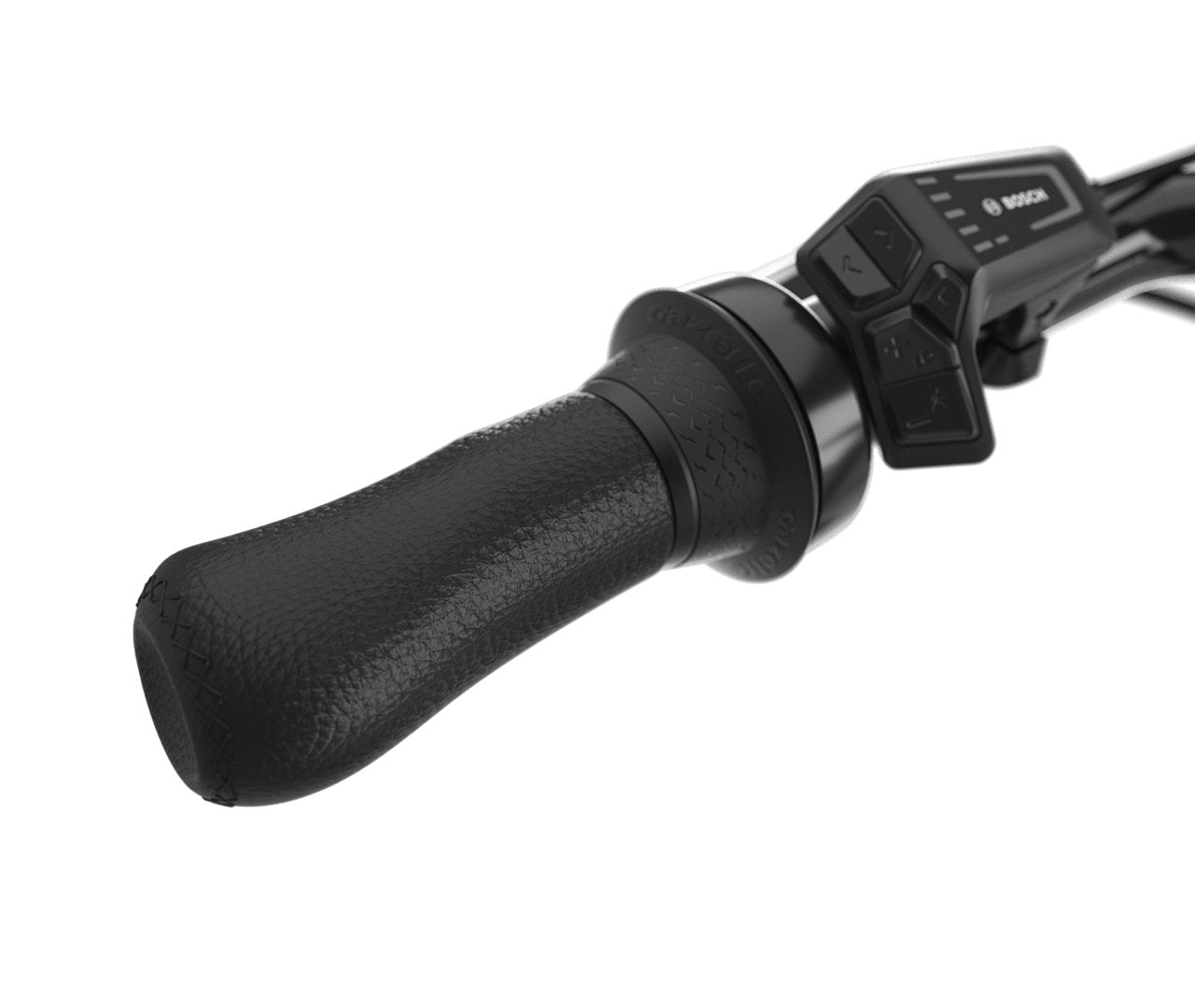

Details make the difference. The Arroyo C5 HMB Elite has delightful details including leather handlebar grips that fit nicely in the hand and also give the ebike a luxurious touch. The gel seat also improves the comfort level and with attractive appearance. This saddle absorbs bumps and vibrations, easing the impact of the road, even on longer rides.

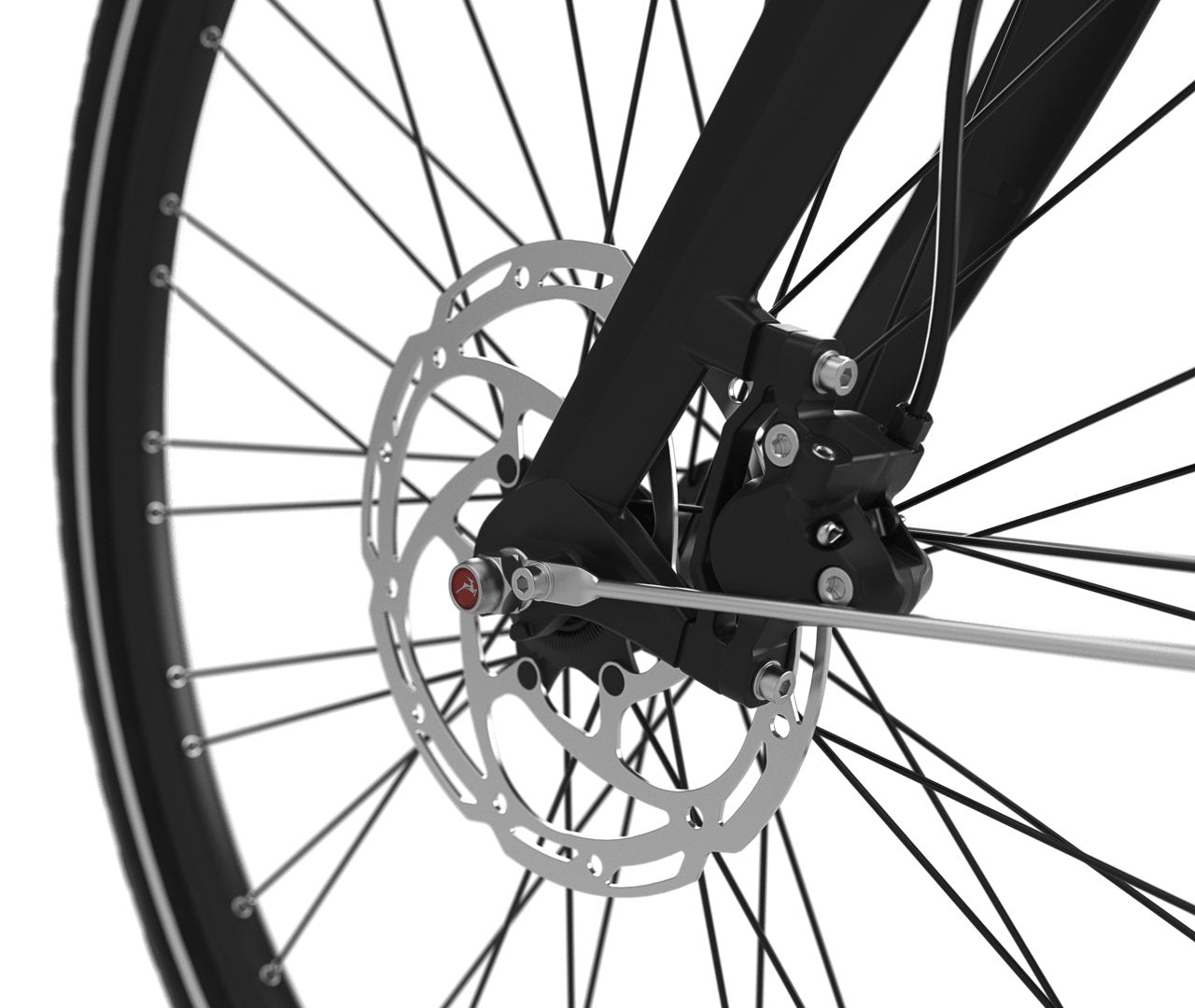

Powerful and controlled braking
If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
Comfort and sport in one bike
No chain, but a durable belt
Powerful, hydraulic disc brakes
No hill is too steep for the powerful motor
Bosch Smart System Performance Line
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

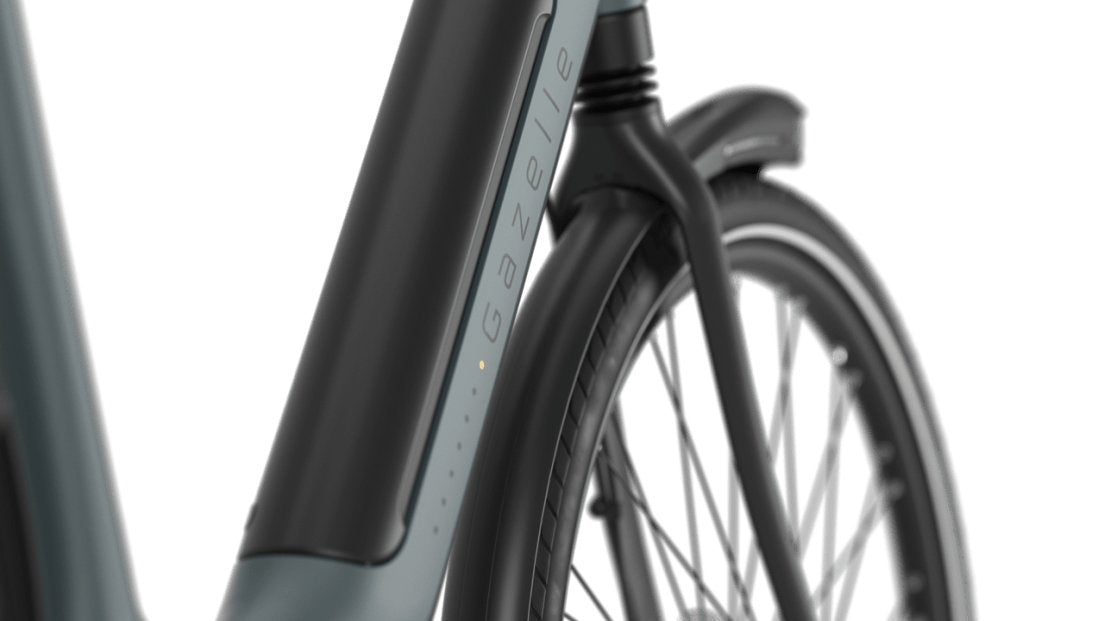

Efficient, integrated power source

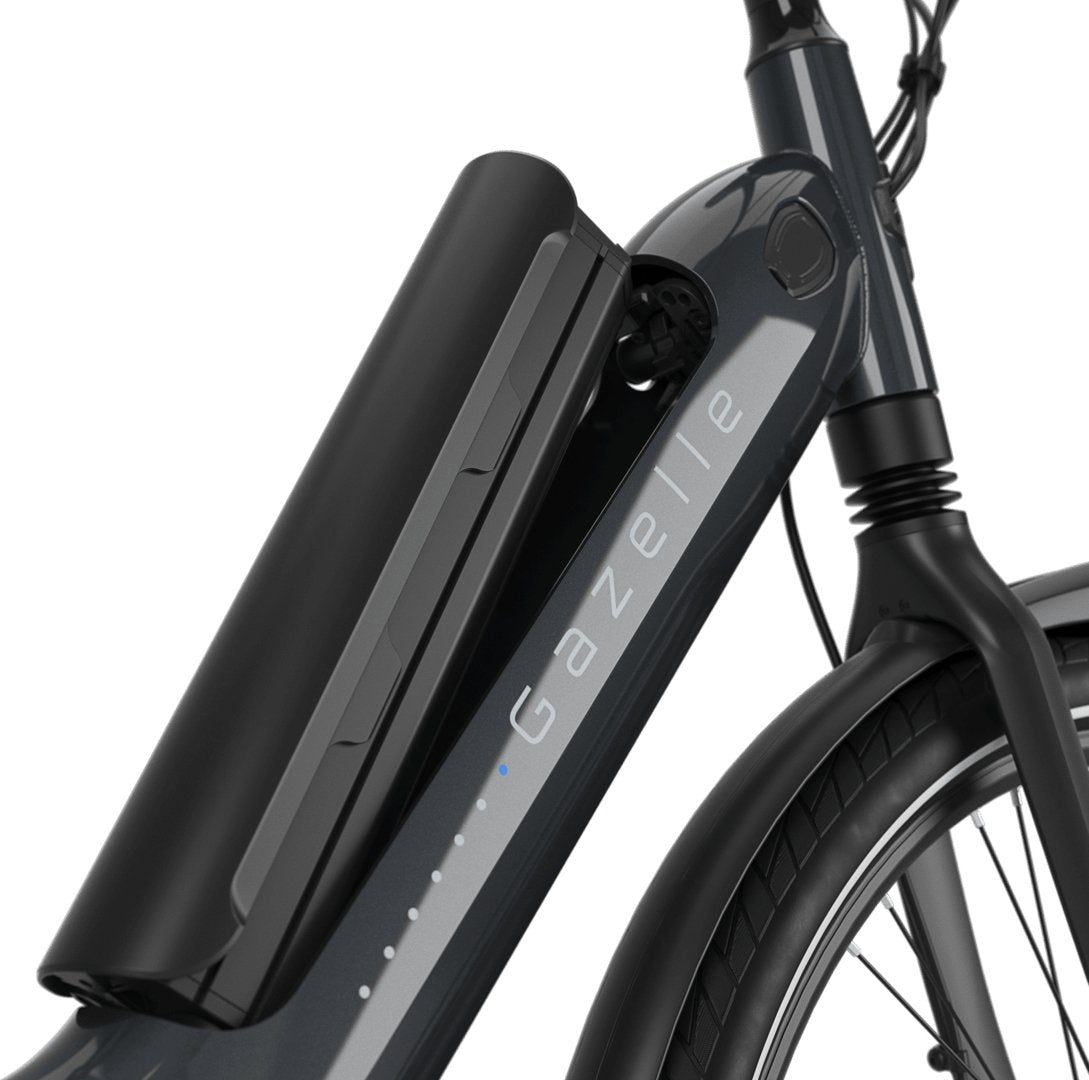

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

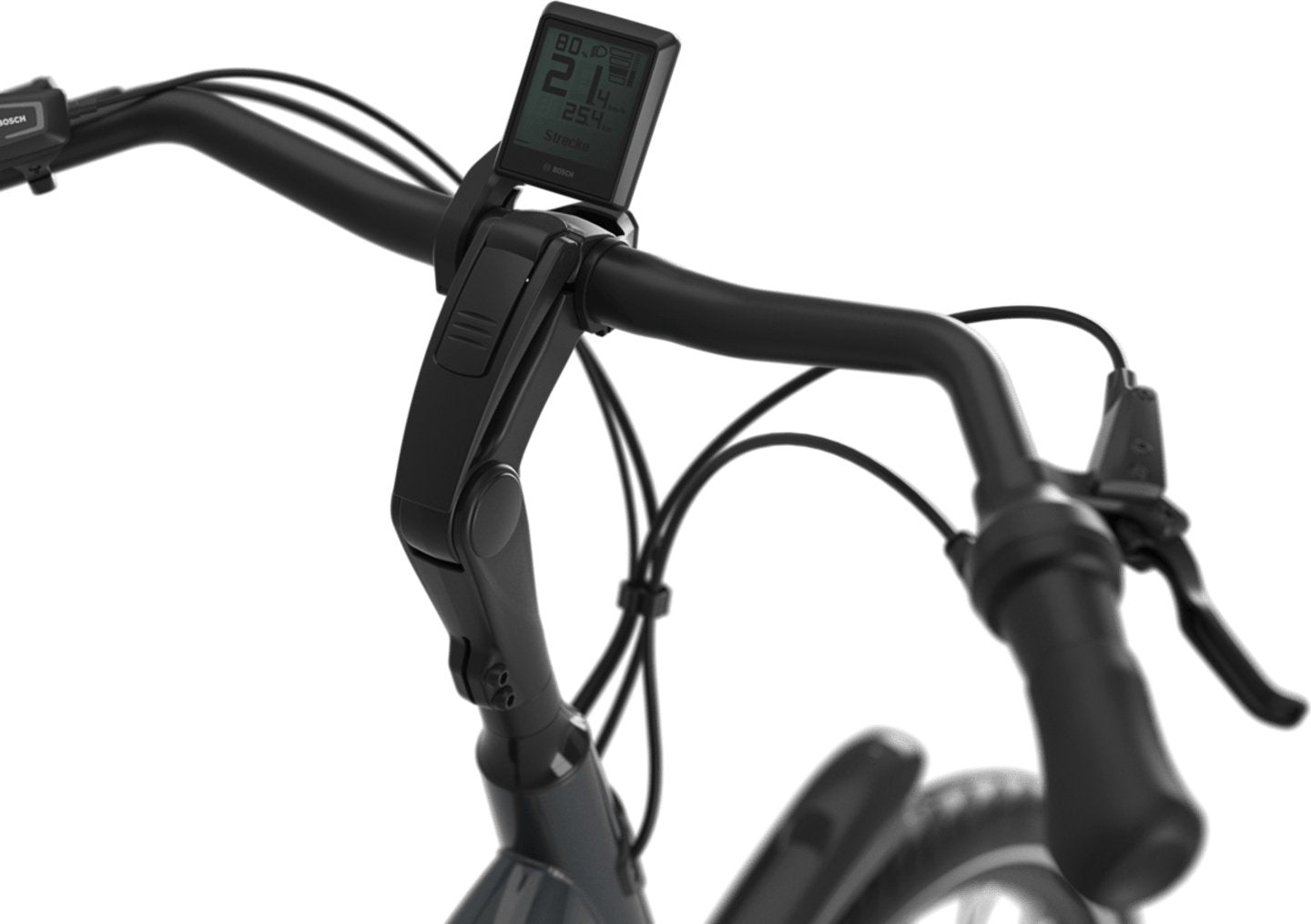

Intuvia 100
The Bosch Intuvia 100 display is detachable and is wirelessly connected to your bike. The display is easy to read in all conditions. All of your important ride data is easily accessible via the LED Remote at the end of the handlebar. You don't have to worry about your display's battery running out of charge. All critical settings can be controlled via the LED Remote at the end of the handlebar without having to reach for the display.
Product Information
Specs
Specification
Highlights
ColorAnthracite grey gloss, petrol blue glossFork suspensionMono IntegratedSystem ModelPerformance LineMotorBosch Smart System Performance Line
General
Bike weight descriptionExcl. batteryWeight (lbs)53.8ColorAnthracite grey gloss, petrol blue glossFront Light IntegratedYesSitting PositionUpright
Frame & Fork
FRAME
Frame description Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material Aluminum

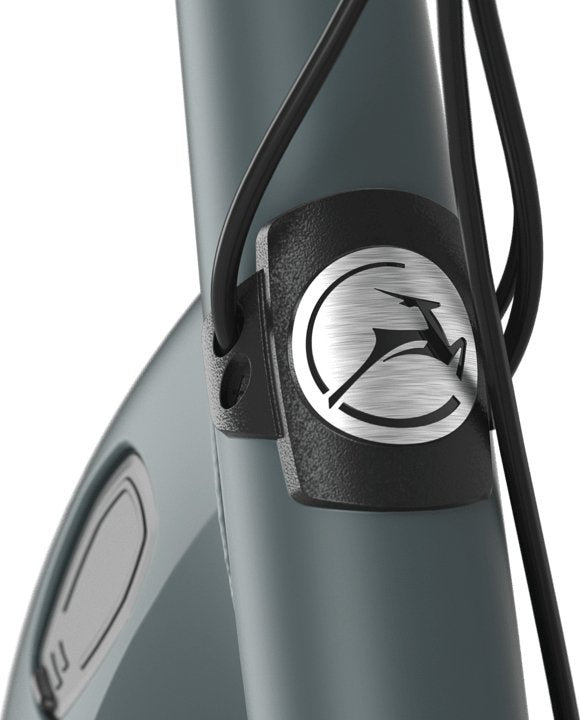

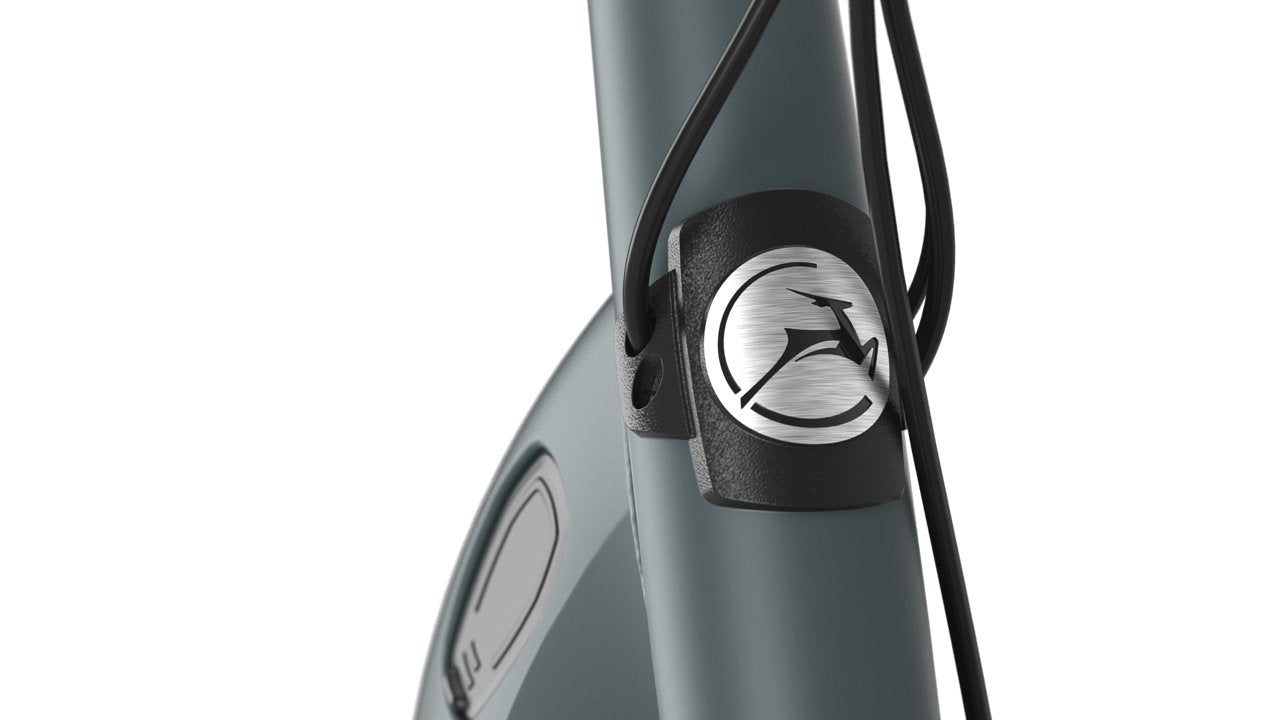

Cockpit Cable Integration Yes
Frame shape Low-StepFrame Size CM 46, 53, 57
FORK
Fork description Aluminium, springing in headset, lightweight
Fork Material Aluminum
Fork suspension Mono Integrated
Wheels & Tires
WHEELS
Front wheel 46, Gates
Rear wheel 34, Gates
Front rim Rodi Viper, Double-walled aluminum for extra strong and efficient cycling performance
Rear rimRodi Viper, Double-walled aluminum for extra strong and efficient cycling performance
Front hub Shimano
Rear hub Shimano Nexus 5, coaster brake
WheelSize Front 28"
TIRES
Wheels Tire Front Etrto 47-622
Front tire Schwalbe Energizer Active Plus
Rear tire Schwalbe Energizer Active Plus
Wheels Tire Front Description Schwalbe Energizer Active Plus
Brake & transmission
NUMBER OF GEARS
Brand shifters Shimano
Front chainwheel 46
Gear Type Hub
Number of gears 5
DRIVETRAIN
Drivetrain Belt
BRAKES
Front Brake Type Hydraulic disc brake
Brake system code S5
Front Brake
Brand Tektro
Primary Rear Brake Model HD-T280
Front brake Tektro HD-T280, 180 mm
Rear brakeTektro HD-T280, 160 mm
Rear Brake LeverTektro
Handlebar & Seat
HANDLEBAR
Handlebar Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem adjustable Yes
Cockpit Handlebar Grip Brand Gazelle
SADDLE
Saddle Selle Royal Essenza Plus
Lighting
FRONT LIGHT
Front light Gazelle Fender vision
Front Light Energy SourceBattery
Front Light Lux 50
REAR LIGHT
Rear Light Energy SourceBattery
Rear light Spanninga Brasa
E-bike technology
ENGINE
System Model Performance Line
Motor Bosch Smart System Performance Line
Ebike System Brand Bosch Smart System
Ebike Engine Position Mid
Ebike Max Speed mph 20
Engine Max Torque (Nm)75
BATTERY
Charger Bosch
Ebike Battery Charger Description 4 Ah
Battery PositionI ntergrated in the frame
DISPLAY
Display Bosch Intuvia 100
Display Removable Yes
Ebike Walk Assist Yes
Display Type LCDc
Service
GARANTIE
Frame warranty 10 year's warranty
Fork warranty 5 year's warranty
Paint warranty 5 year's warranty
Other parts warranty 2 year's warranty
Battery warranty 2 year's warranty
Motor warranty 2 year's warranty
Display warranty 2 year's warranty
Other

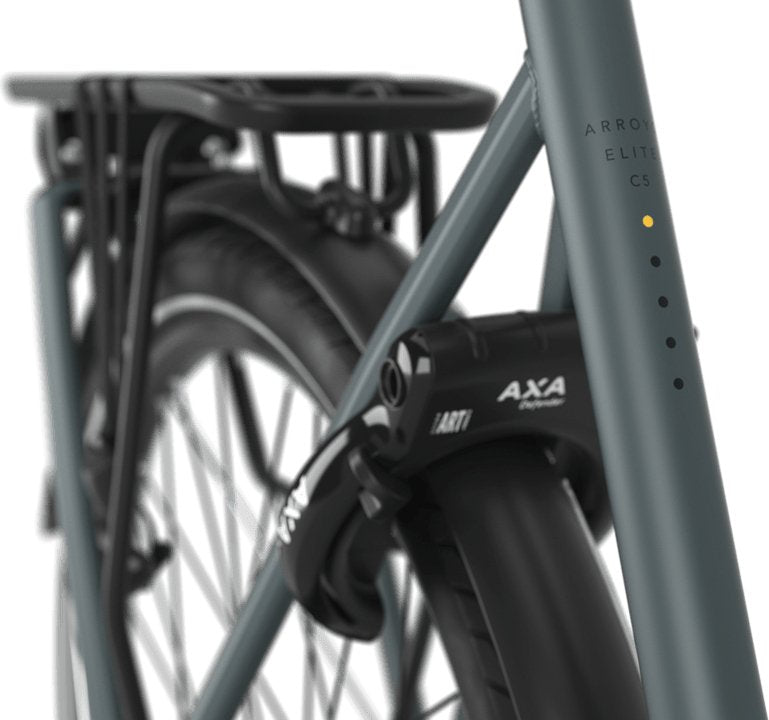

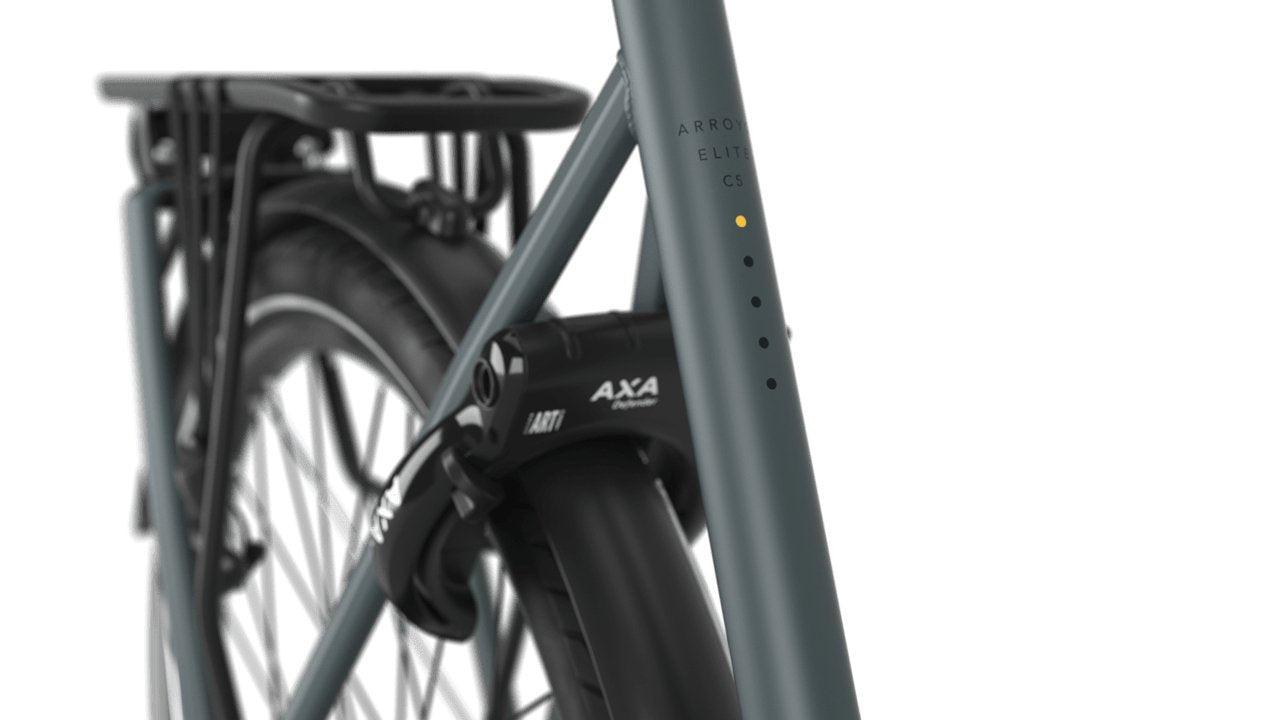

LOCK
Lock Axa
Lock brand Axa
ART classification ART**
OTHER
Kickstand Ursus Mooi
Coat protectorYes
CARRIER
Rear carrier description Aluminum MIK HD system carrier
Carrier MIK Profile Yes
Rear carrier max load (lbs)59
Rear carrier Yes
