About this item

① Ready-to-Install Design – This premium fork comes preloaded with a bearing kit by default, allowing direct installation with no extra parts required—specifically designed to match the E Ride Pro 3.0 / SR platform. If you require the fork without the bearing kit pre-pressed, simply leave a note when placing your order.

② Tailored Fitment Options – Built to the geometry of the E Ride Pro 3.0 / SR, this fork ensures a precise fit. The standard drop crown color is black. If you would like a different crown color, please include a note with your order at checkout.

③ Spring Weight Recommendations
For 203mm Travel Fork (compatible with 19"/21" wheels):

45lbs spring – ≤100kg
60lbs spring – 100–130kg (ideal for heavy jumping)
45–60lbs progressive spring – 80–130kg

For 228mm Travel Fork (compatible with 19"/21" wheels):

45lbs spring – ≤100kg
55lbs spring – 100–130kg

④ Performance Suspension System – Featuring a high-performance inverted oil-spring damping system, this fork offers multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload, ensuring optimal tuning across various riding styles and terrain types.

⑤ Built for Durability – The fork uses AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum for the tubes. The spring wire is made from 55CRSI, engineered for longevity and performance in demanding off-road conditions.

FEATURES:

Center Distance: 750–800mm
Main Piston Travel: 203–228mm
Tube Diameter: ∅37mm
Caliper Mount Spacing: 99.5mm
Disc Brake Size: ∅220mm (Upgradeable)
Damping System: Inverted Oil-Spring
Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)
Spring Wire: 55CRSI
Triple Clamp: CNC Precision Machined

Fitment:
- E Ride Pro 3.0 / SR

About this item

FEATURES:

Fitment:

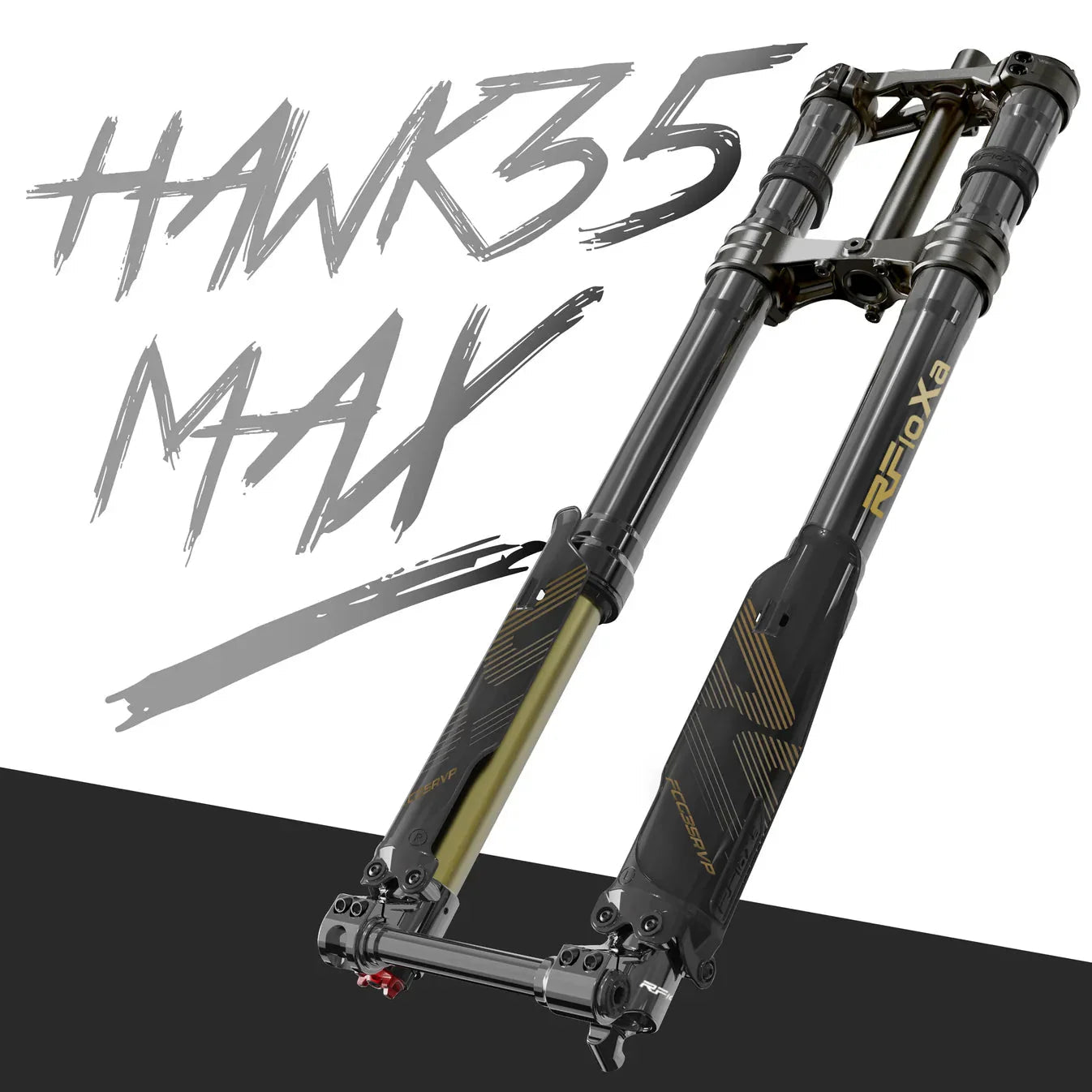

RFloXa Hawk35 Max
