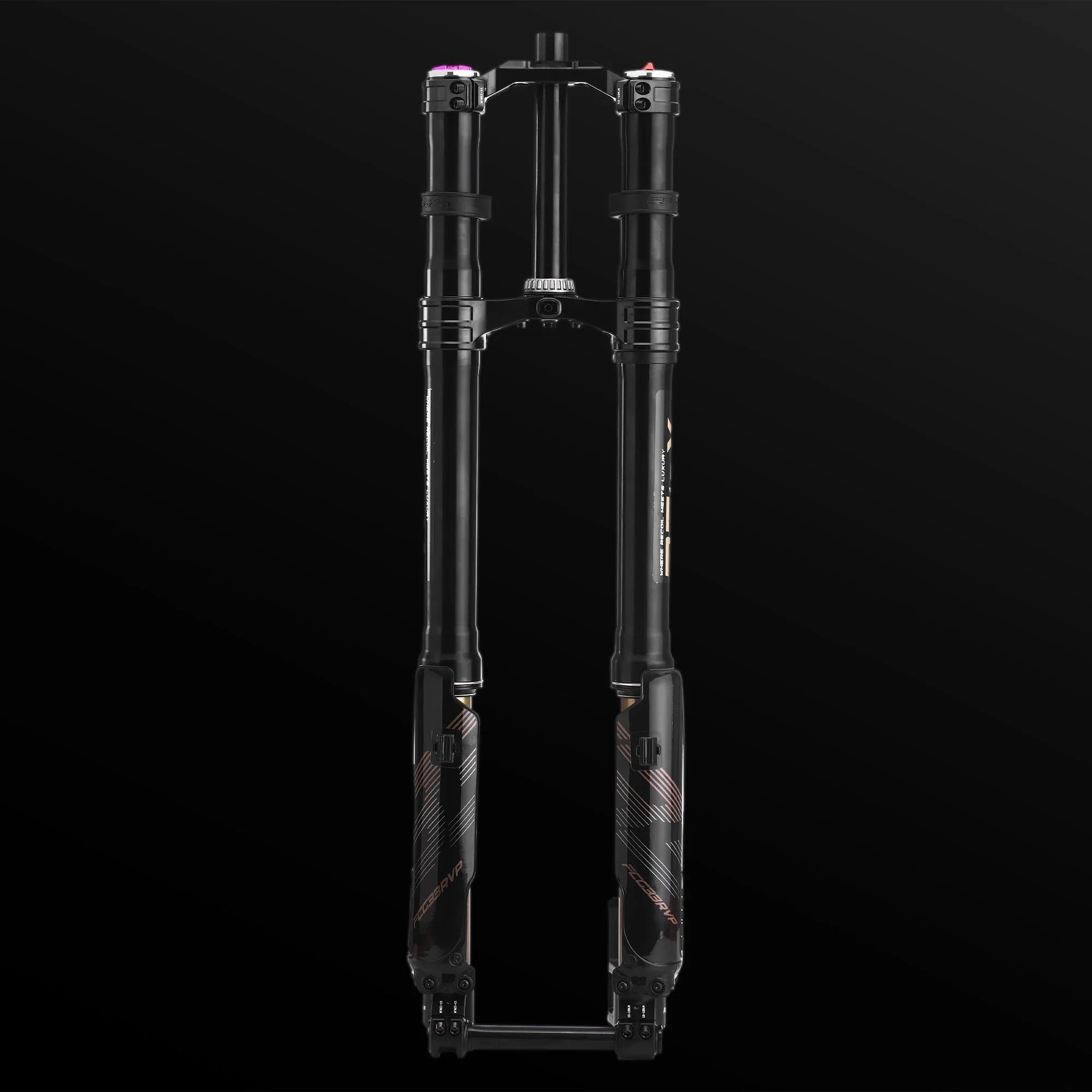

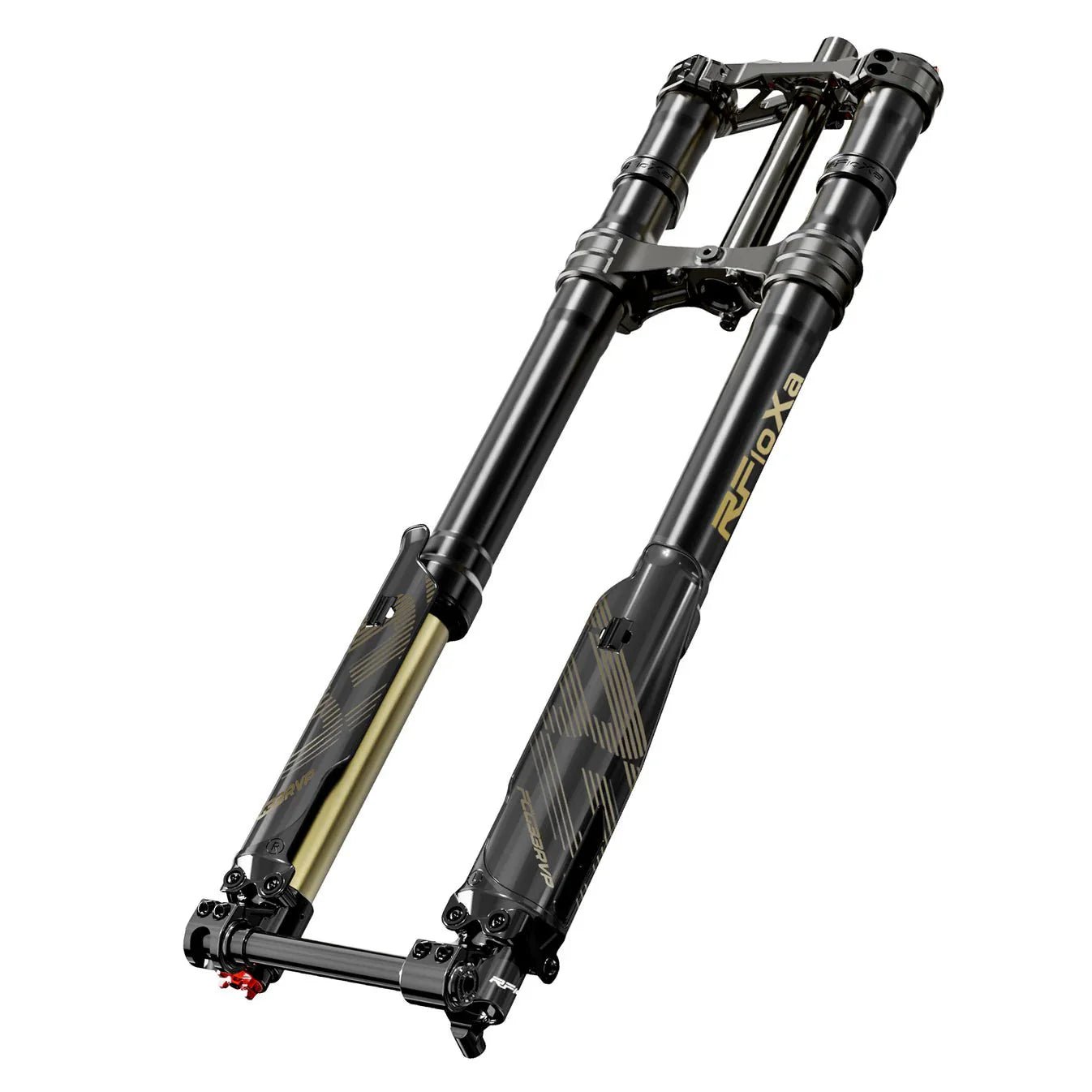

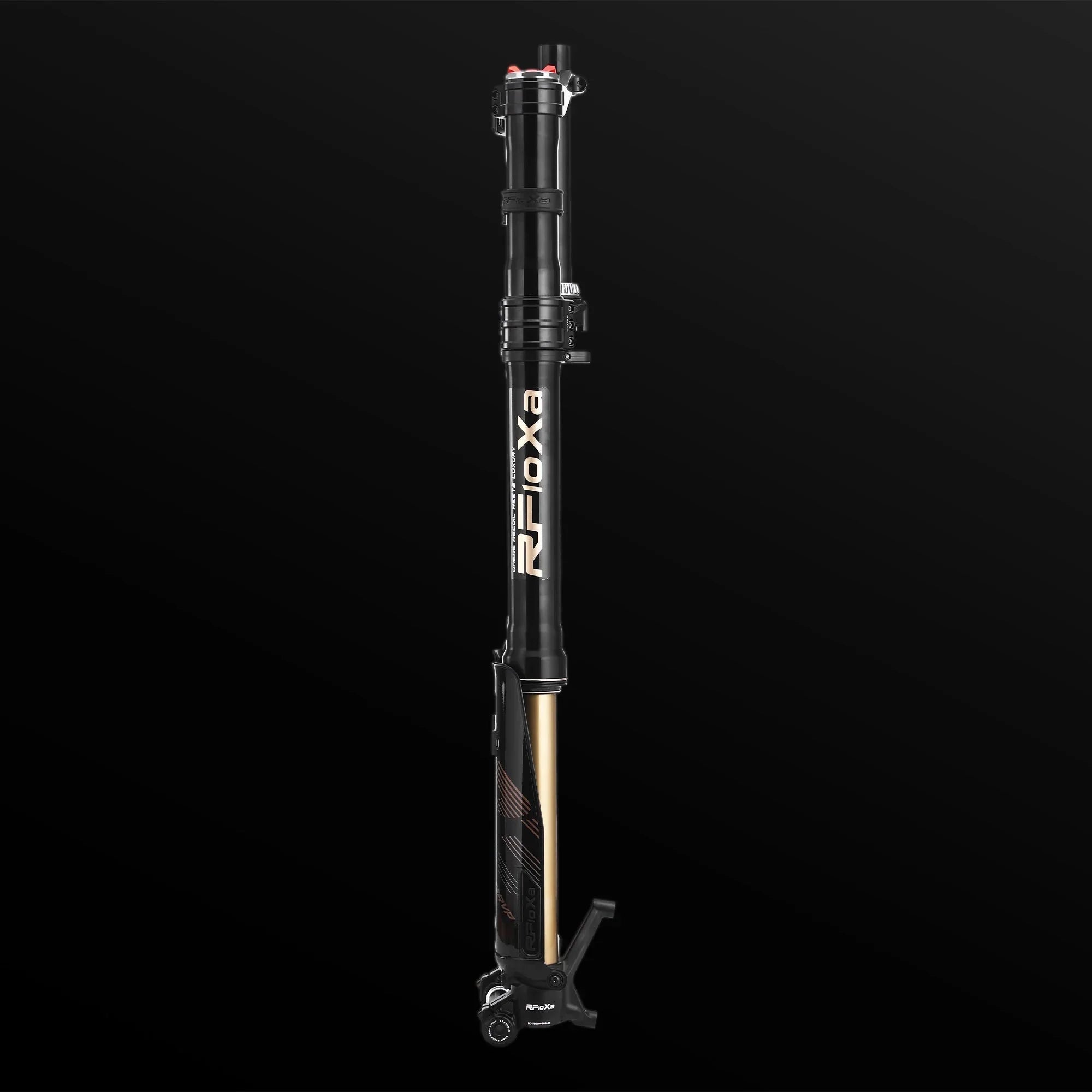

About this item

① Preloaded Bearing Kit Included – This fork comes pre-installed with a bearing kit by default for quick and easy installation—no extra parts needed. If you require a version without the pre-pressed bearing kit, simply leave a note when placing your order.

② Purpose-Built for Talaria MX5 – Engineered specifically around the Talaria Sting MX5 geometry, this fork ensures ideal fitment and performance. It's compatible with both 19" and 21" wheels, making it versatile for a range of setups and terrain.

③ Spring Rate Recommendations
For 203mm Travel Fork (19"/21" wheel compatible):

45lbs spring – ≤100kg
60lbs spring – 100–130kg (ideal for heavy jumping)
45–60lbs progressive spring – 80–130kg

For 228mm Travel Fork (19"/21" wheel compatible):

45lbs spring – ≤100kg
55lbs spring – 100–130kg

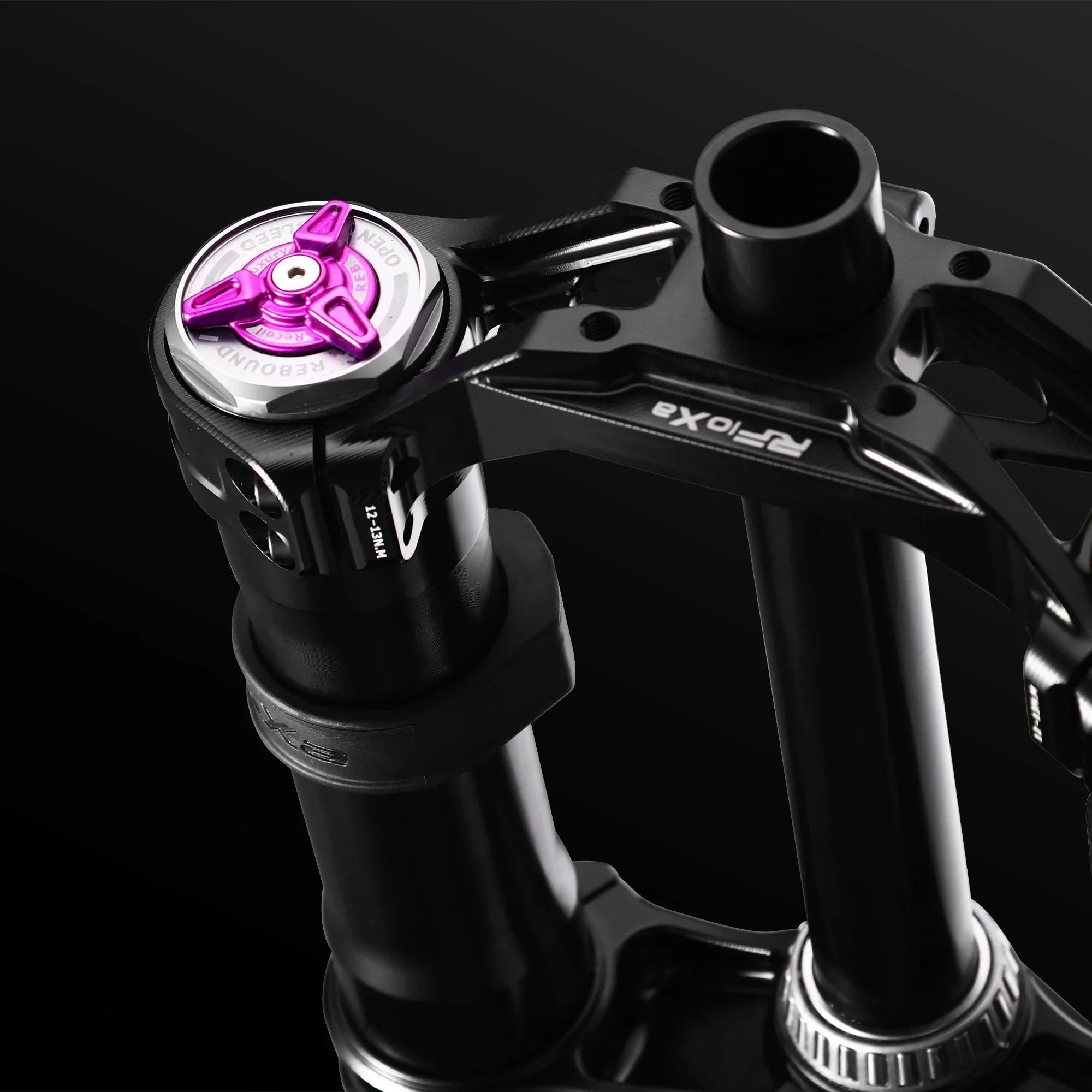

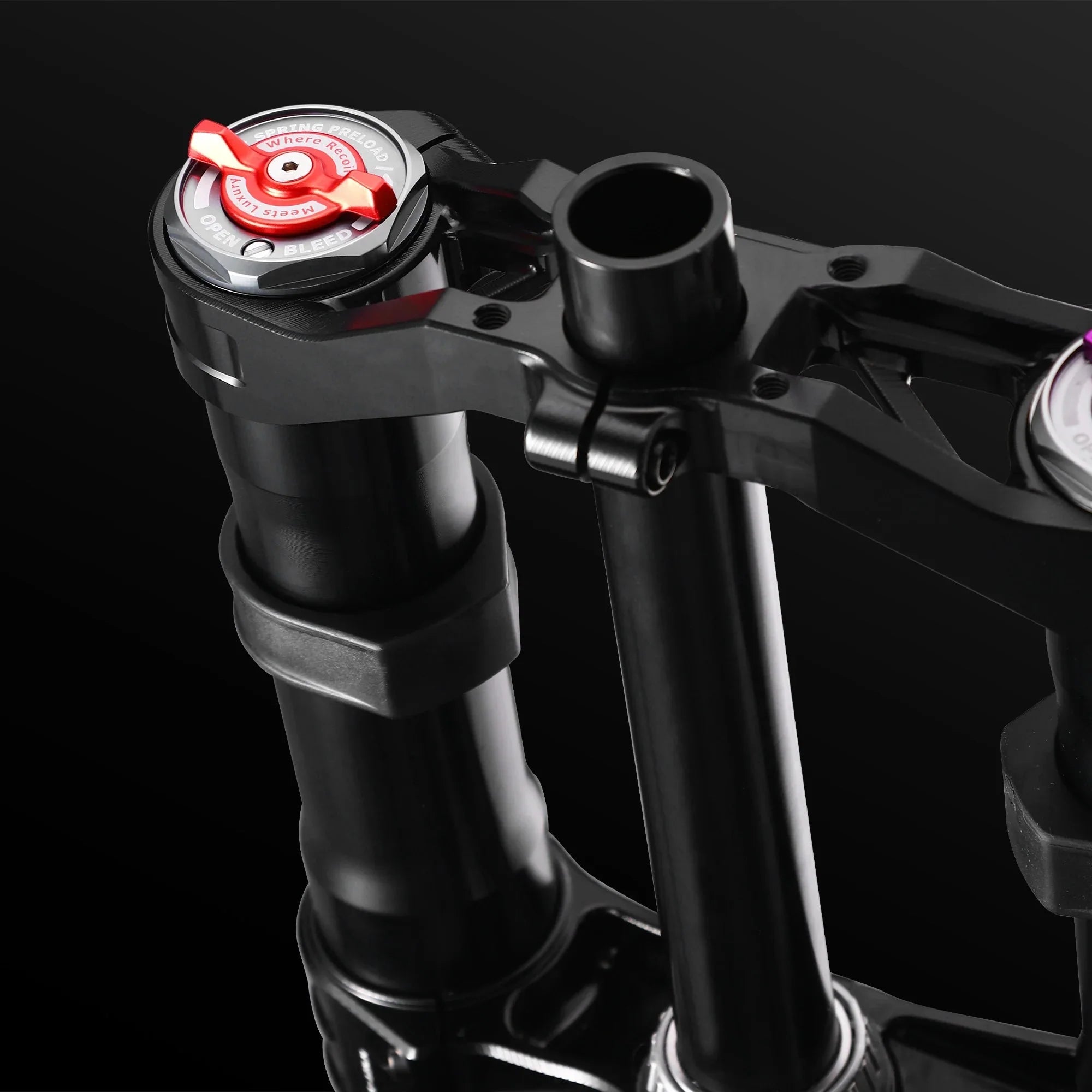

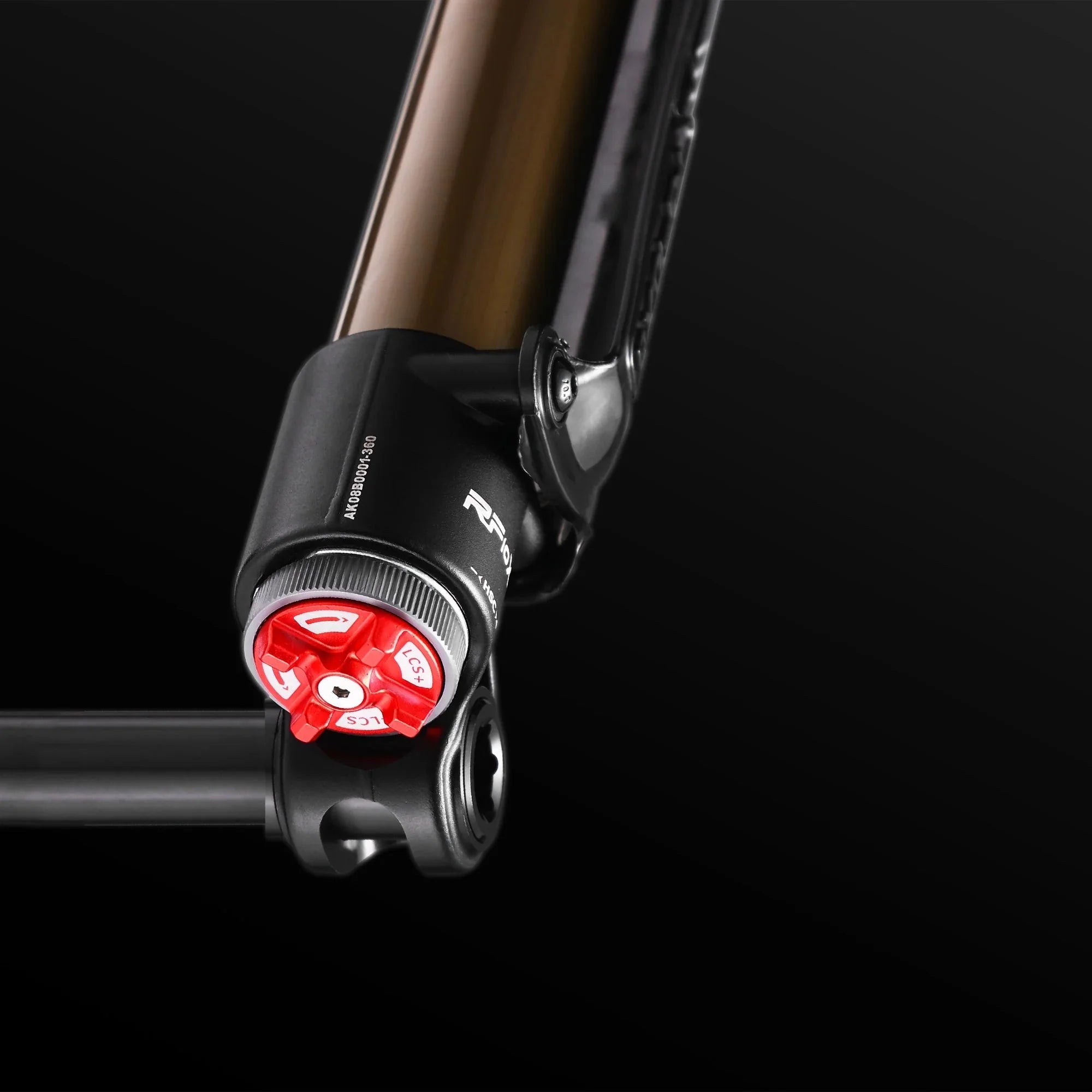

④ Precision Suspension System – Equipped with an inverted oil-spring damping system, this fork provides multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload, allowing you to dial in your ride for any terrain or riding style.

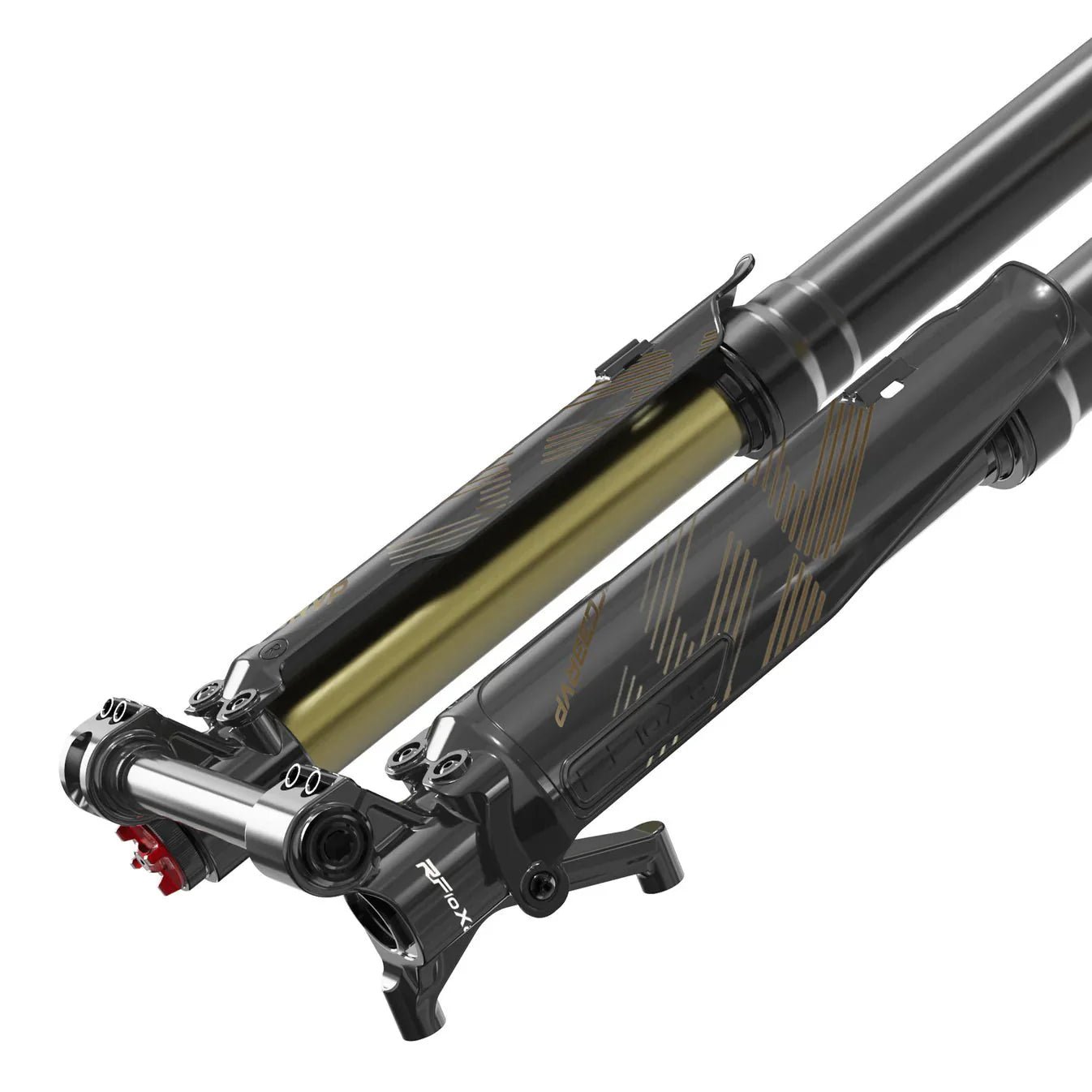

⑤ High-Quality Construction – Built using AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, this fork delivers the ideal balance of strength and weight. The use of 55CRSI spring wire ensures enhanced durability and long-term performance.

FEATURES:

Center Distance: 750–800mm
Main Piston Travel: 203–228mm
Tube Diameter: ∅37mm

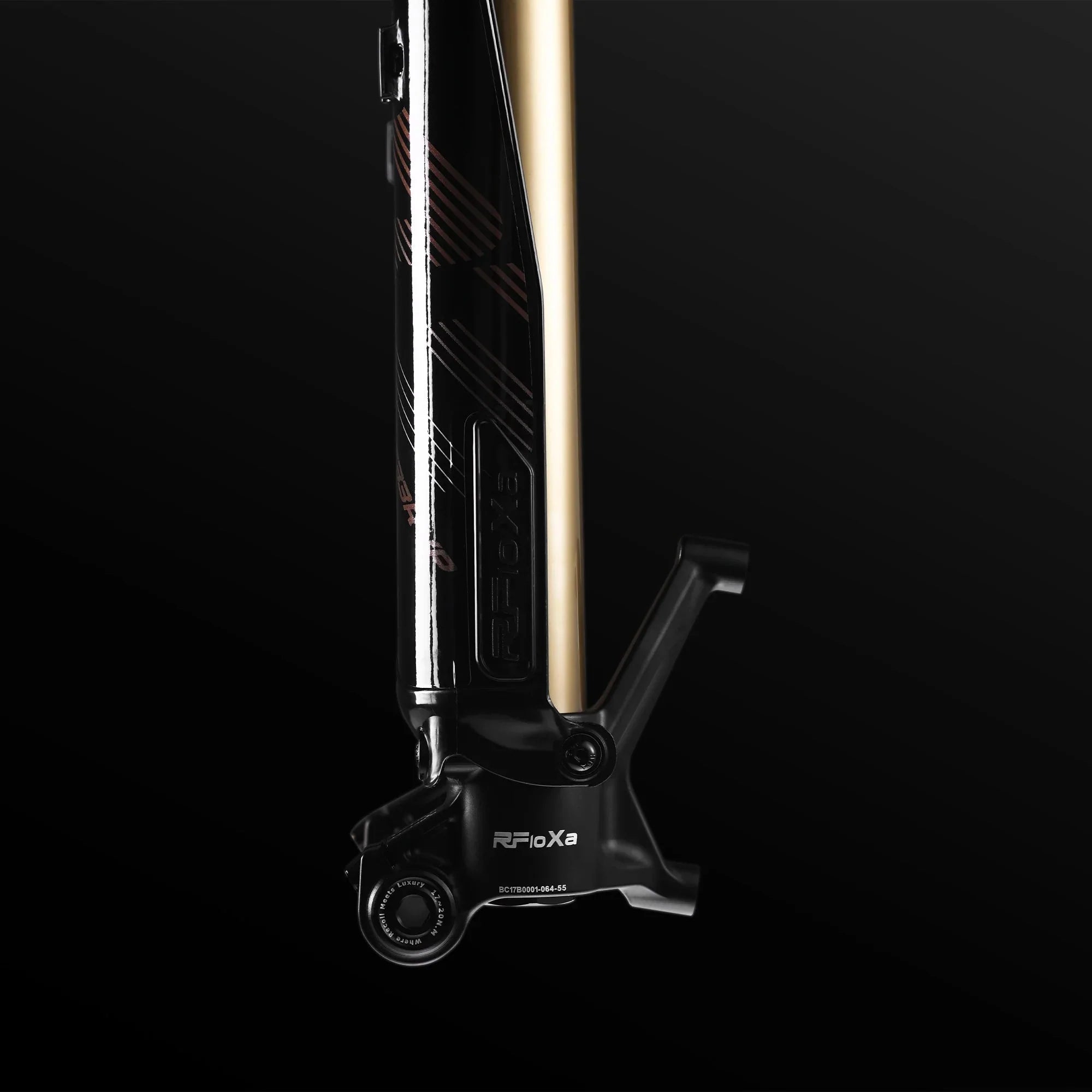

Caliper Mount Spacing: 95.5mm
Disc Brake Size: ∅220mm (Upgradeable)
Damping System: Inverted Oil-Spring
Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)
Spring Wire: 55CRSI

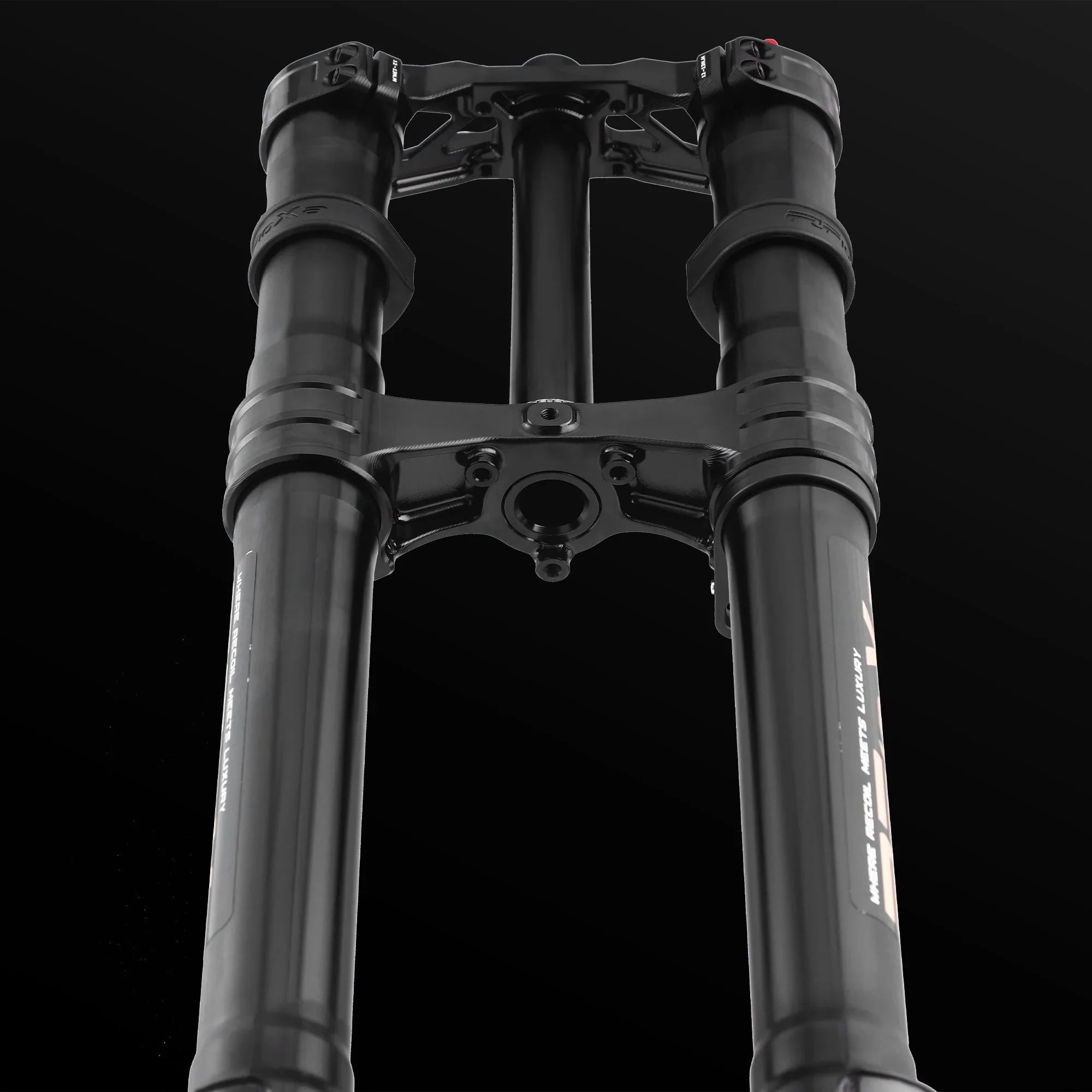

Triple Clamp: CNC Precision Machined

Fitment:

Talaria Sting MX5

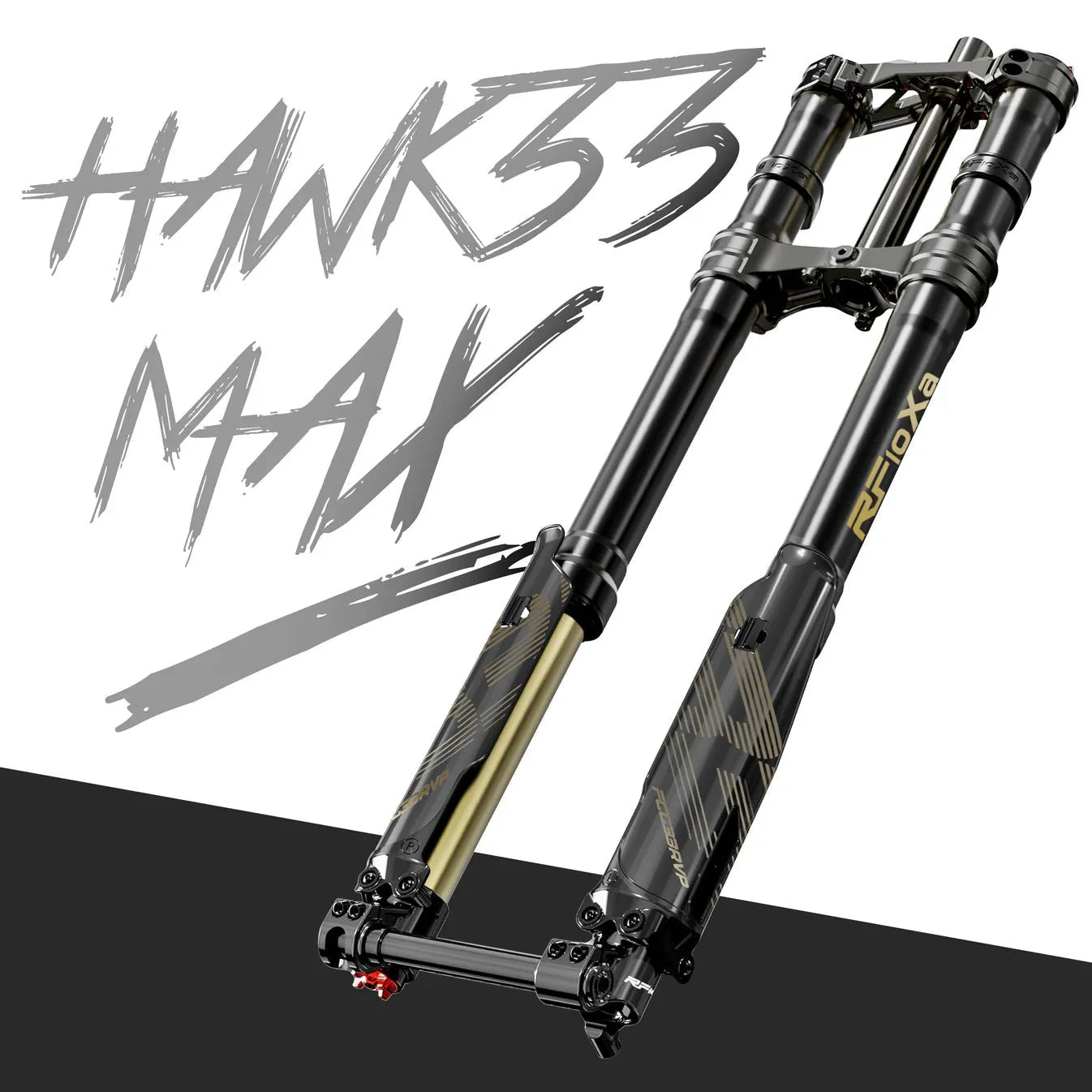

RFloXa Hawk33 Max
