About this item

Note: Our wider drop crown triple clamp kit data is based on Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee and Eride Pro product data, all non-standard front wheel cores or modified wheel cores with non-factory data will not fit perfectly.

① Max Widened Stability -- The Max widened version triple clamp includes upper and lower clamps, a steering stem, raised flange, widened front wheel axle kit, and screws, all designed for superior stability and support. The triple clamp and steering stem are available in five color options—black, purple, blue, red, and titanium gold—with a matching finish for a seamless look. Crafted using CNC precision machining, this setup ensures durability and an impeccably engineered fit, meeting the demands of high-performance riding.

② High-Performance Design -- The Hawk31 MAX front fork features an impressive travel range of 203-228mm and is designed for top-tier performance in downhill and off-road biking. With a stanchion diameter of 37mm and a caliper mount spacing of 74mm, it’s compatible with 203mm and 220mm disc brakes (with options for upgrades), making it ideal for electric dirt bikes and downhill bikes.

③ Advanced Suspension Technology -- This fork employs an inverted oil-spring damping system with asymmetrical left and right legs for a unique, independent structure. It includes multi-stage adjustments for high-speed compression damping, low-speed compression damping, rebound damping, and spring preload, allowing for precise tuning to match your riding style and terrain.

④ Robust Build Quality -- Constructed with AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, the Hawk31 MAX is built for durability and strength. The use of 55CRSI spring wire ensures resilience and performance under stress.

⑤ Customizable Adjustments -- All adjustment functions, including Multi-stage High-Speed Compression, Low-Speed Compression, rebound, and preload settings, are controlled by easy-to-use manual knobs. This allows for quick and convenient tuning in various riding conditions, ensuring optimal performance and comfort.

⑥ Enhanced Bottom-Out Support -- The fork features a unique oil pressure bottom-out design that provides strong support at the end of the travel, enhancing stability and reducing the impact of hard hits.

⑦ Reliable Damping Performance -- The internal damping system includes dual compression valve plates, ensuring stable and reliable compression damping. The fork uses high-quality, low-friction, low-freezing-point shock absorber oil to maintain consistent damping performance, even in extreme conditions

Fitment Bike:

Talaria MX3 / MX4 / XXX
SurRon LBX, LBS, L1E
Segway X-260 / X-160
E-Ride Pro S / SS 1.0/2.0
Rawrr Mantis
79 Bike Falcon M
Ventus One
RFN Apollo
Rerode R1

FEATURES:

Center Distance: 750-800mm
Main Piston Travel: 203-228mm
Tube Diameter: ∅37mm
Caliper Mount Spacing: 74mm
Disc Brake Size: ∅203mm (Upgradeable)
Suitable For: Electric Dirt Bikes, Downhill Bikes
Damping System: Inverted Oil-Spring
Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
Spring Wire: 55CRSI
MAX Triple Clamp: CNC Precision Machined

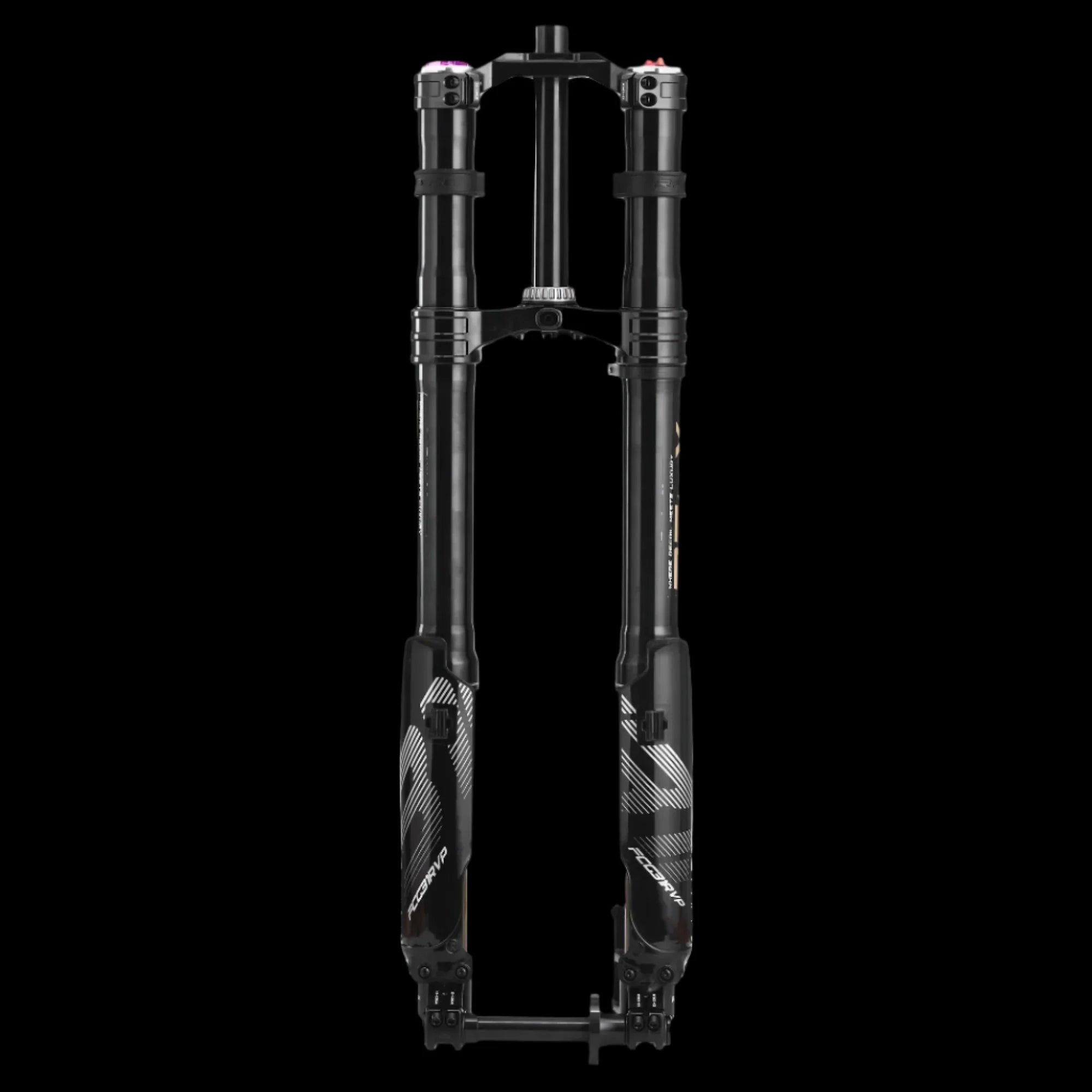

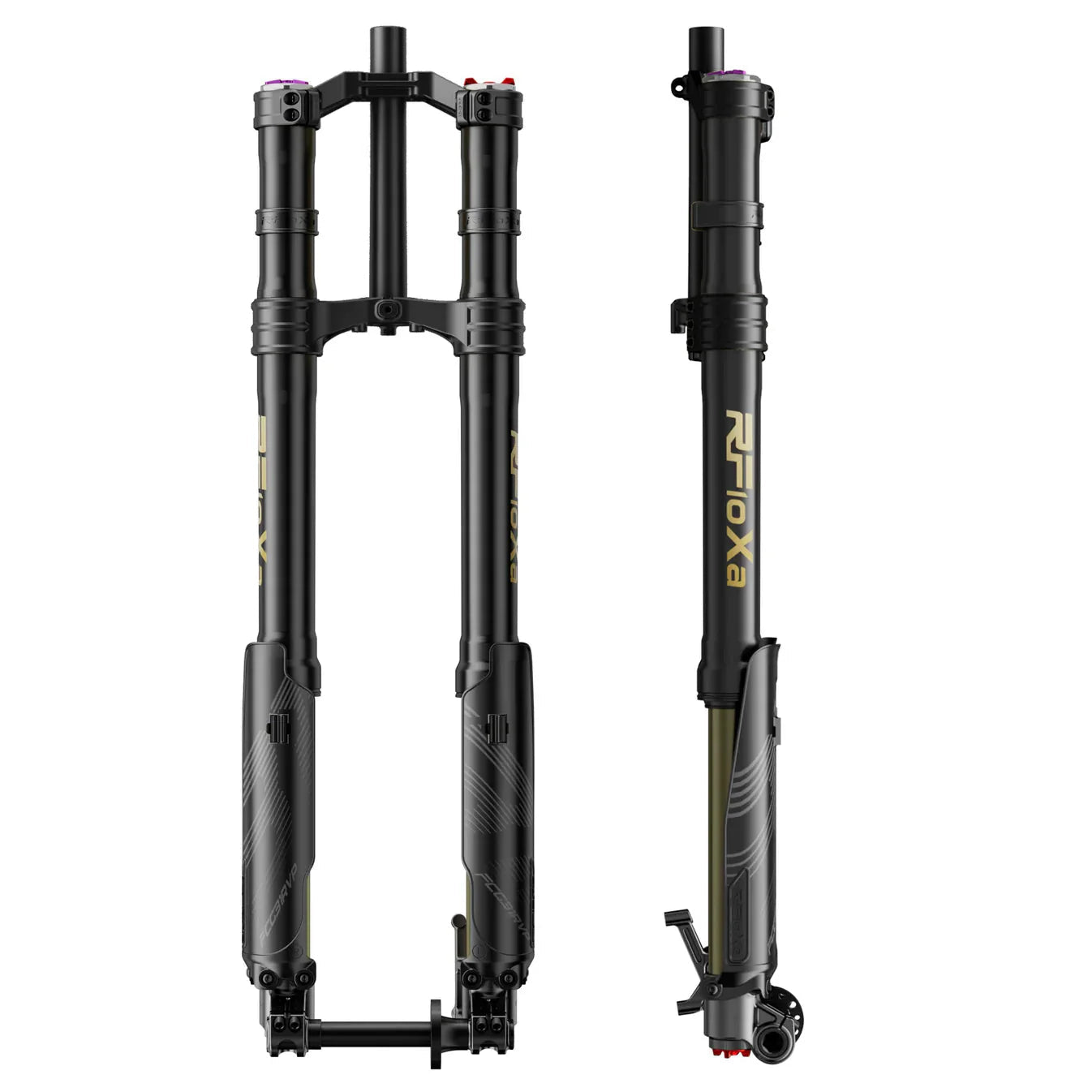

RFloXa Hawk31 Max (Black)
