New in

TOP Speed 34mph

Range 18-44 Miles

Power 1200w

Playload 300lbs

Warranty 2 Year

EMOTO Verified Brand

By Bonnell

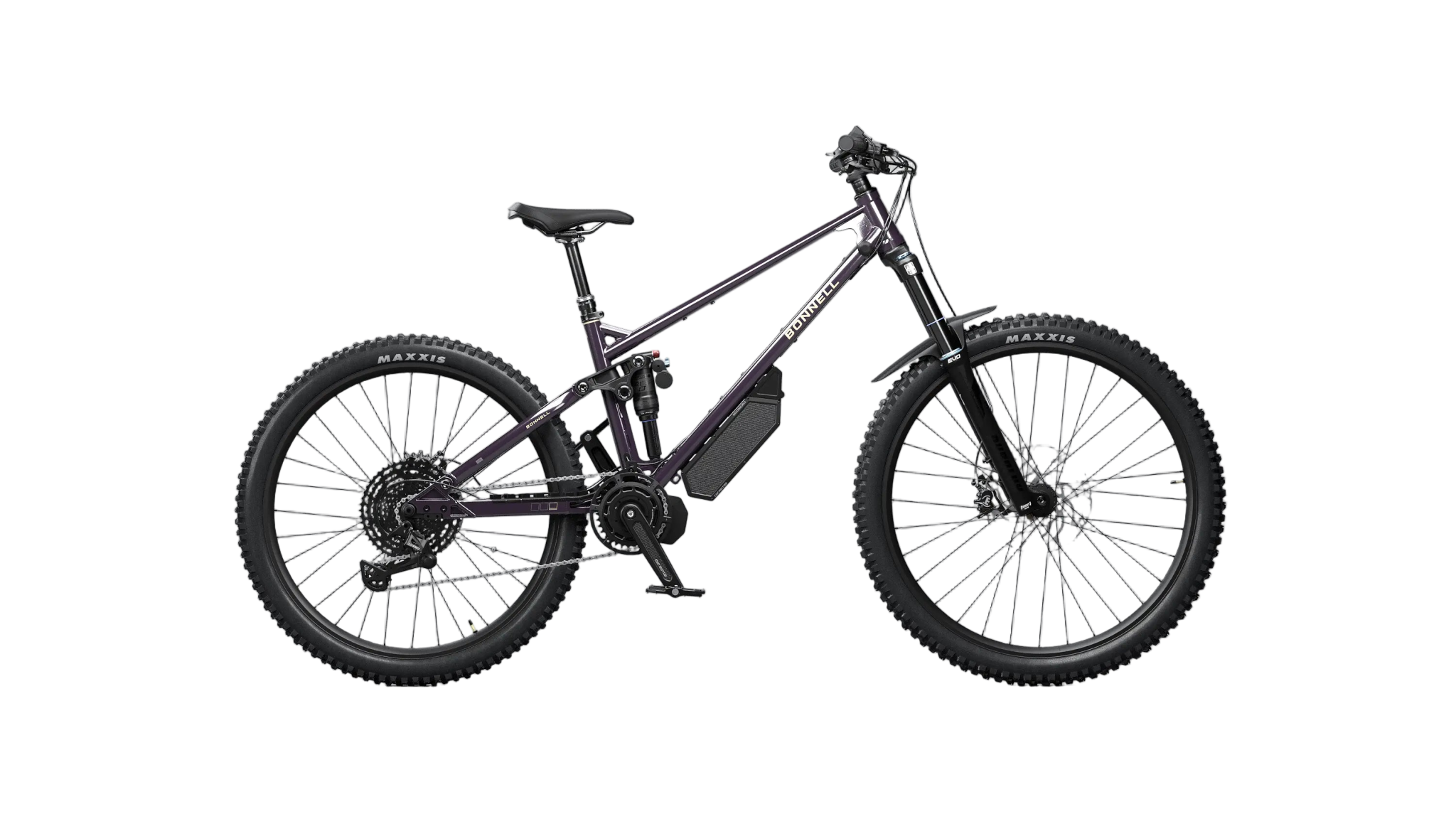

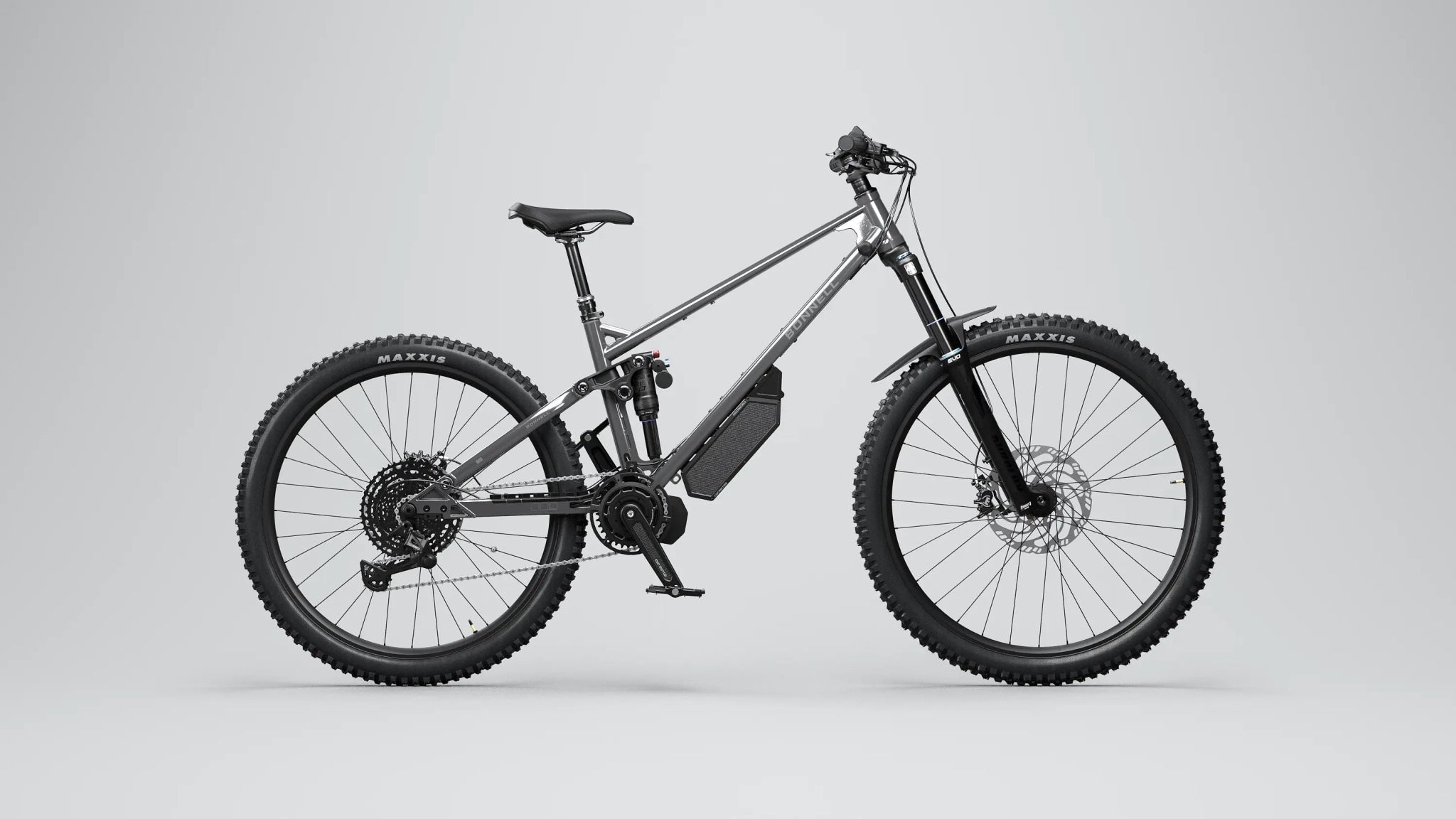

Bonnell 775 AM Electric Mountain Bike

Name: Bonnell 775 AM Electric Mountain Bike
Brand: Bonnell
SKU: 48911109423412
Price: 4295.0 USD
Availability: InStock

Earn 4295 entries 1x

$4,295.00

520wh Watt Hours

18-44 Mile Range

1200w Motor Power

18.75ah Amp Hours

ENTER TO WIN $100K

With your purchase of a verified e-bike, you will be entered in to win our EMOTO Vol. 1 giveaway. Learn more.

ALL-ACCESS ADVENTURE

The 775 AM isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.

Overview

Intended use: Enduro
Front travel: 160
Rear travel: 150
Weight: 55lbs [25kgs]
Range: 18-44 mi [30-70 km]

Color

Texas Grey Amethyst

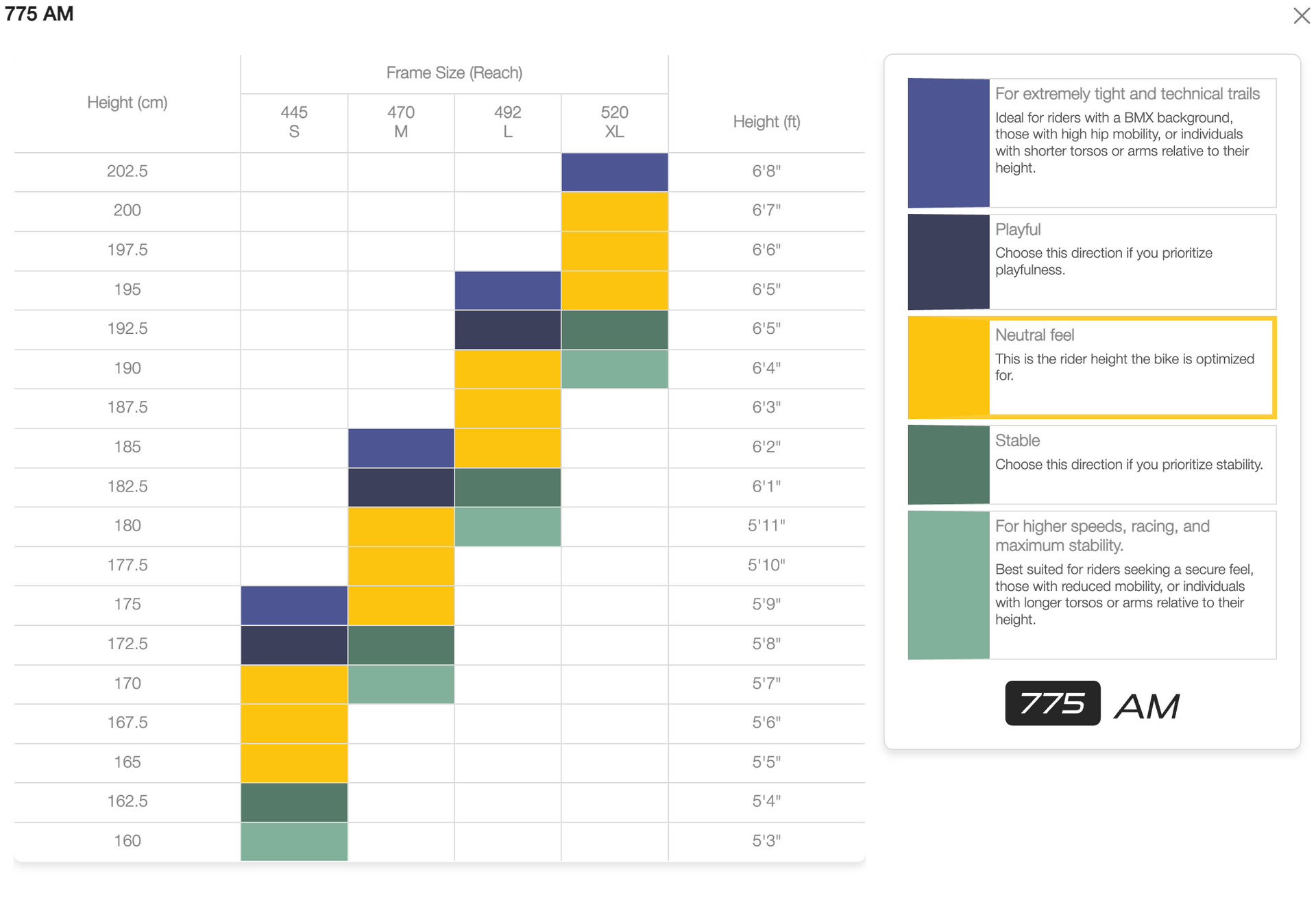

Size

Medium Large X-Large

Silas Road Bike Helmet

$27.99

Abus, Bordo uGrip 5700 SH, Folding Lock, Key, 80cm, 2.6', 5mm, Black

The Abus Bordo uGrip 5700 SH delivers professional-grade security with i...

$98.99

Bonnell 775 AM Electric Mountain Bike - Texas Grey / Medium is backordered and will ship as soon as it is back in stock.

Questions? Give us a call at (602) 715-0907

More details

Features

Power Your Ride: The AM Batteries

The A-series quick-connect battery comes standard on the 775 AM in a 520Wh configuration, with the option to upgrade to a higher-capacity 780Wh version to suit your riding needs. Designed to keep you powered for longer rides, it offers a range of up to 43 miles (70 km). Whether you stick with the standard 520Wh or opt for the 780Wh upgrade, both deliver exceptional performance and range for your adventures.

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Compact Design, High Performance: The 775 AM Motor

Photon motor packs 1,200 watts of peak power and 110 Nm of torque, delivering outstanding versatility and performance. Built to Class 2 compliance, the throttle offers effortless cruising up to 20 mph (25 km/h). Riders can also switch to Class 3 mode in the Bonnell Riding app, disabling the throttle and increasing the top assisted speed to 28 mph (45 km/h). With Pedal Assist (PAS), you get a seamless mix of motor and pedal power—ready to take on any trail and define your own epic adventur

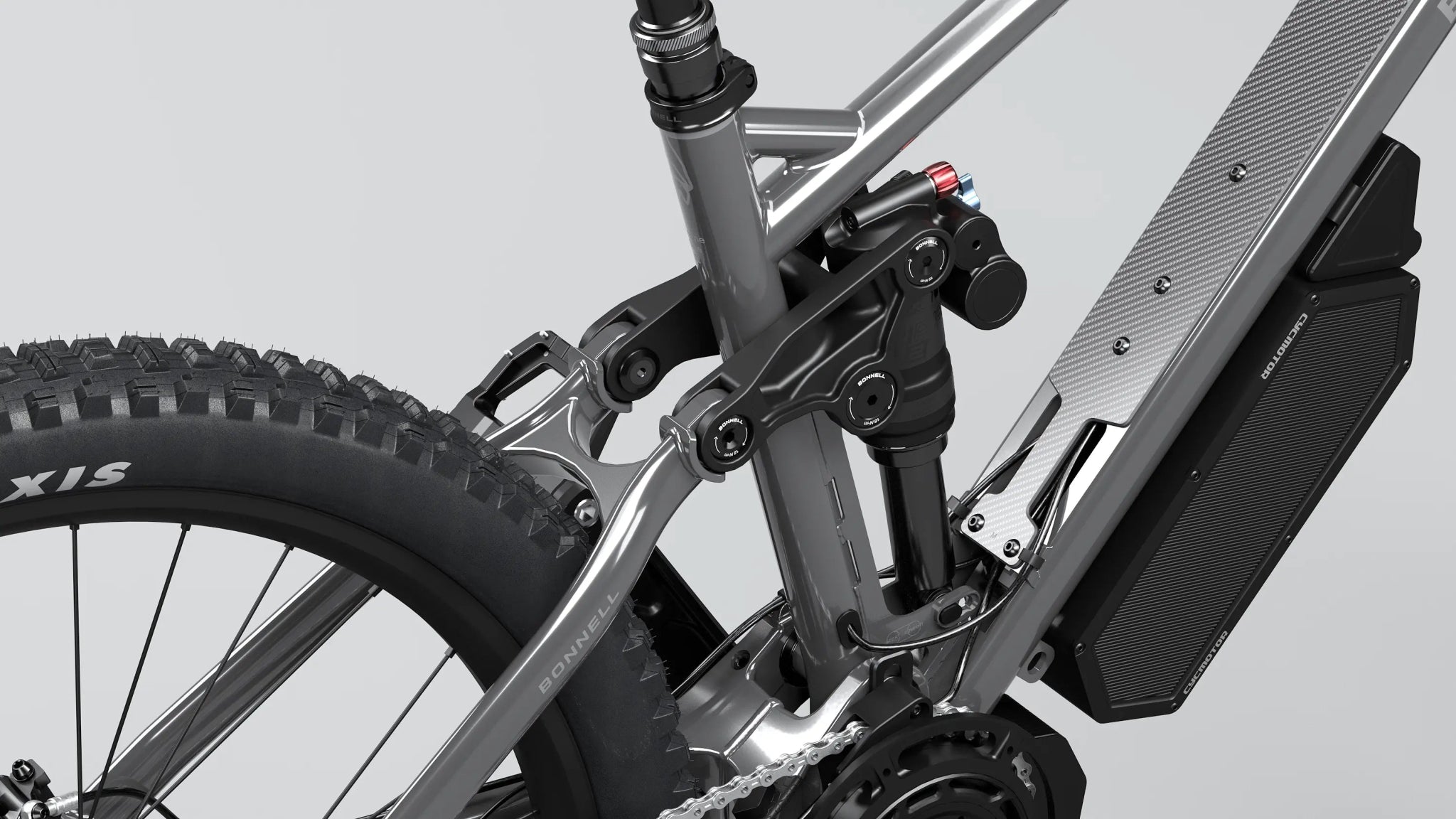

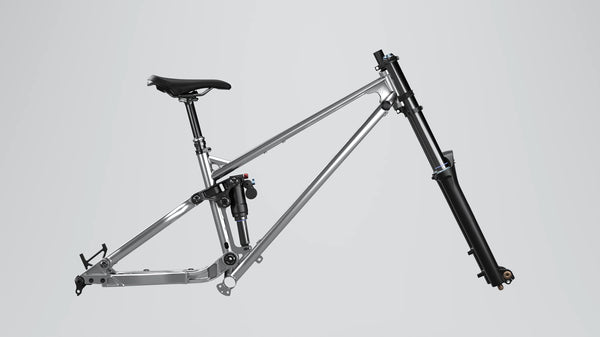

Engineered for Durability: The 775 Frame

The 775 AM boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Durolux 36x/38x fork and TriAir 3CR shock, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.
